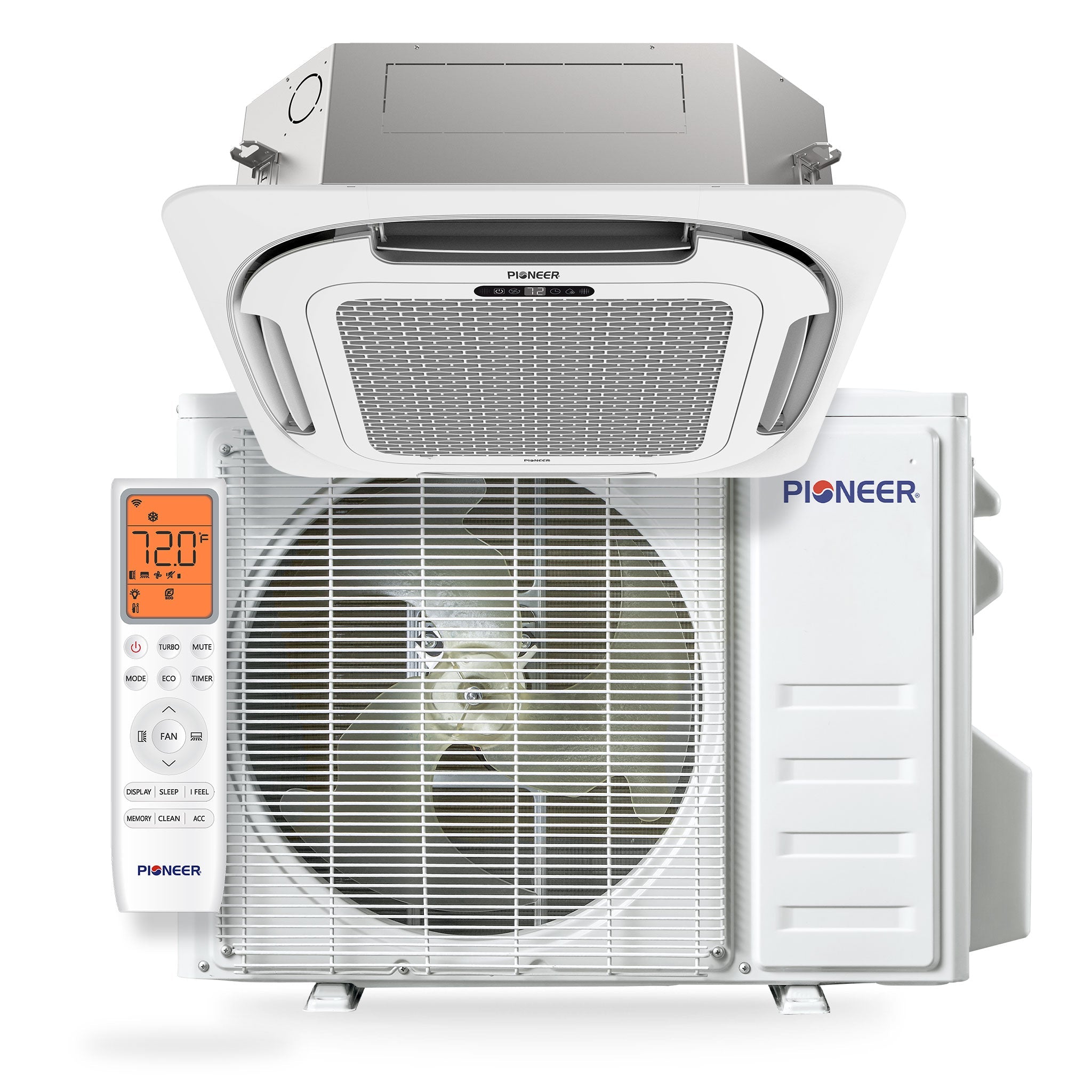

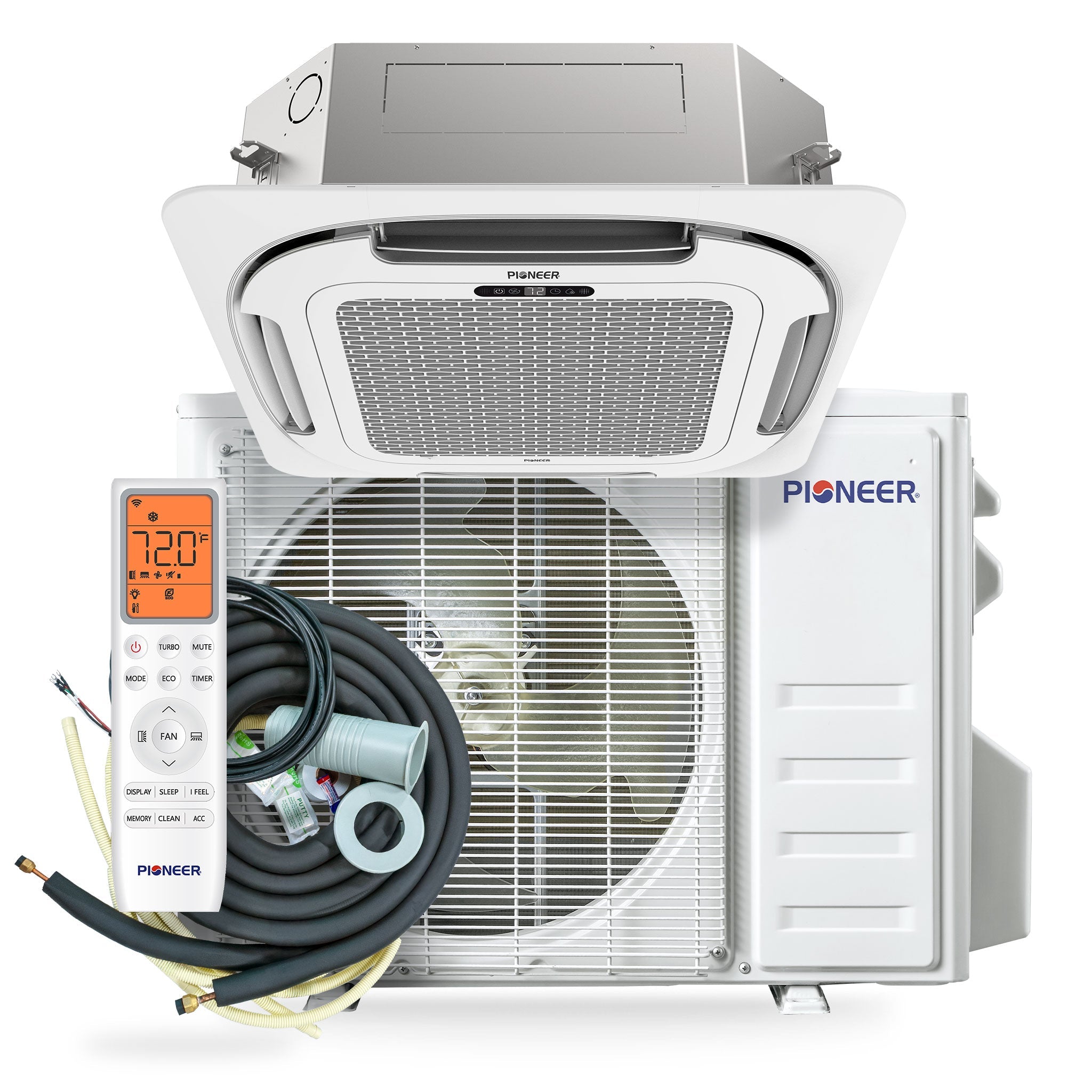

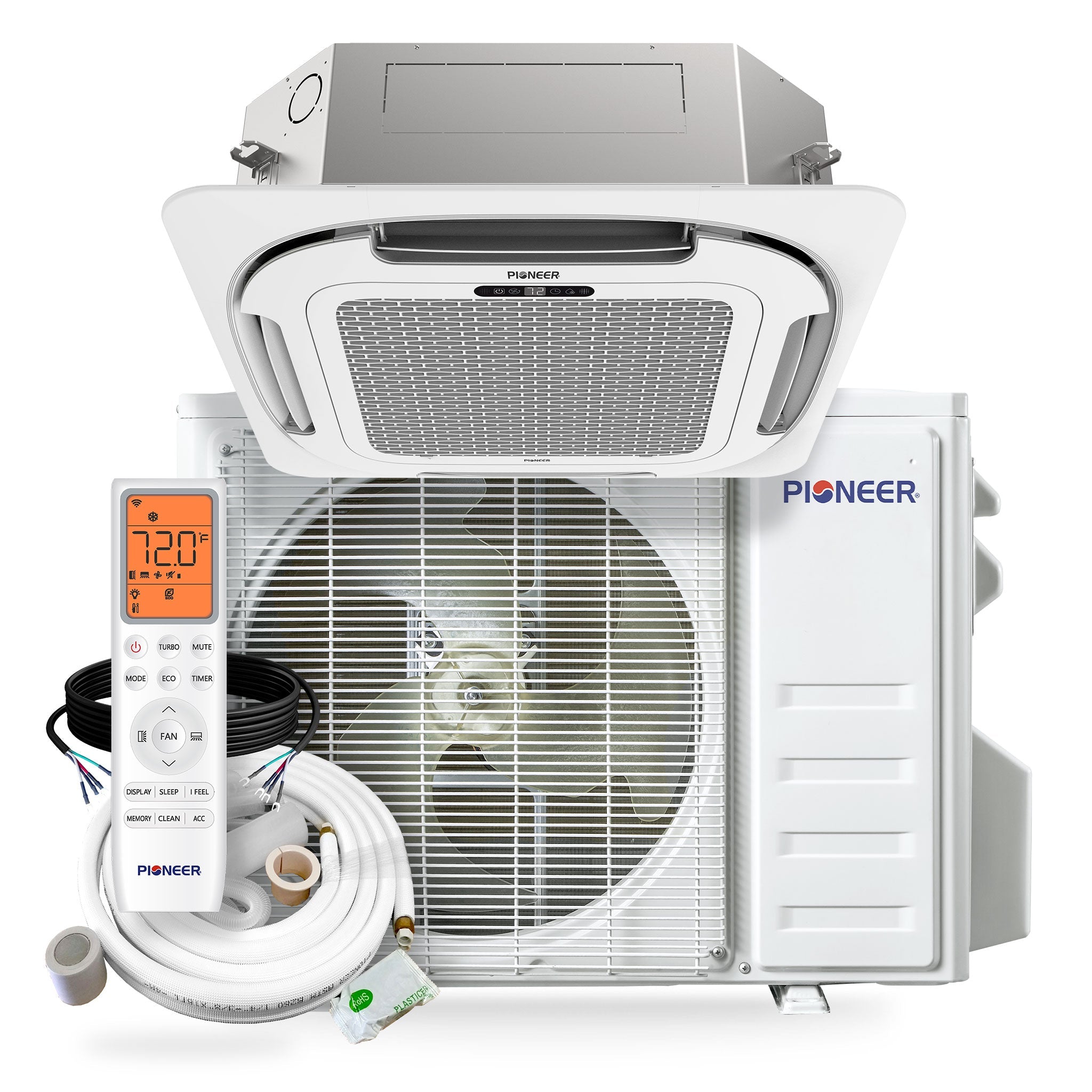

Pioneer® Quantum Ultra™ 23,000 BTU 22.5 SEER2 230V 8-Way Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set

Summary

• High Efficiency Quantum Ultra Eight-Way Ceiling Recessed Cassette Split Heat Pump System
• Cooling capacity: 23,000 BTU/H with 22.5 SEER2 / 11.7 EER2 efficiency
• Heating capacity: 25,000 BTU/H with 10.4 HSPF2 / 3.5 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• Eight-Way Ceiling Recessed Cassette Mounted Ductless Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
• Functional Remote with:
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

• AHRI Certificate
• Energy Guide
• Submittal Sheet

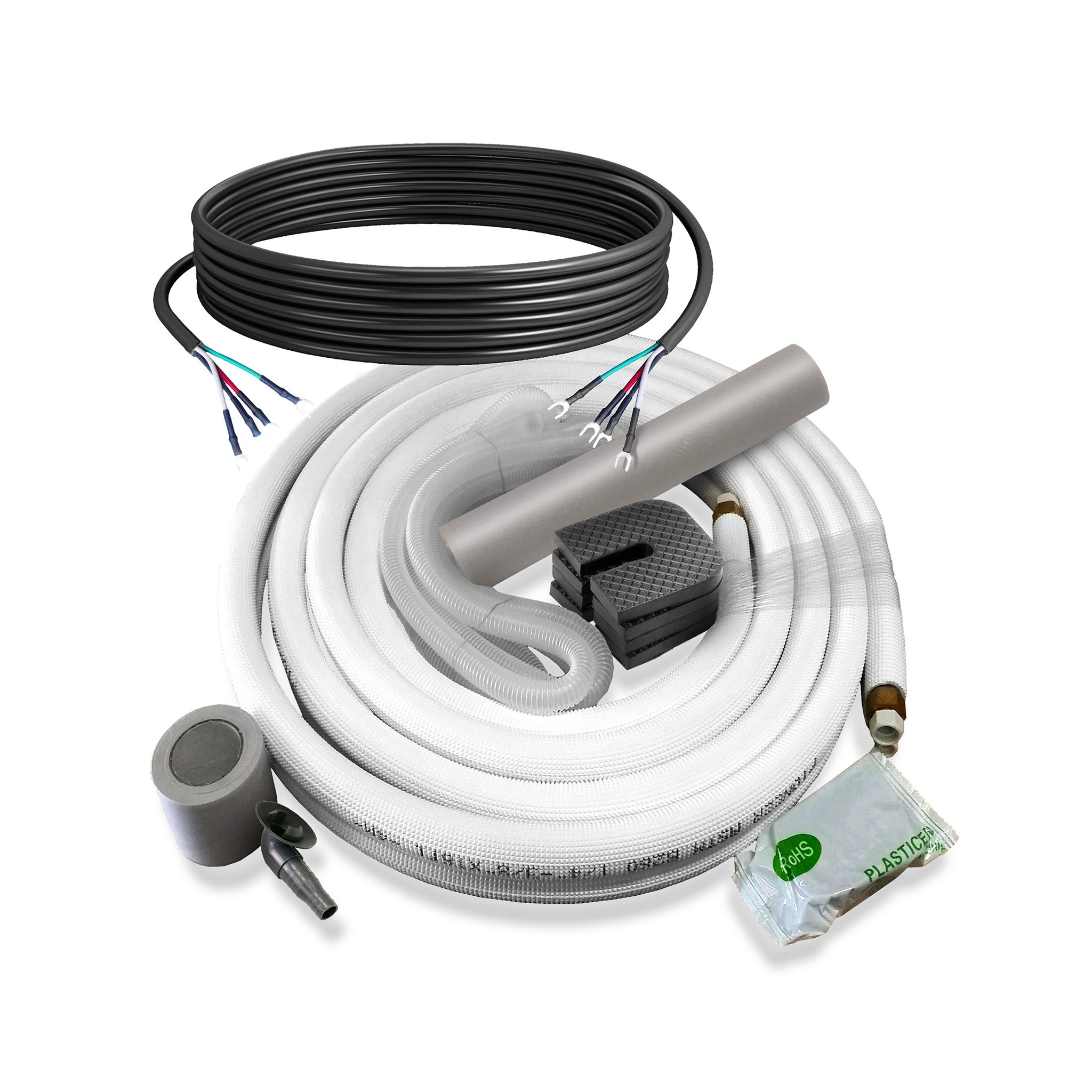

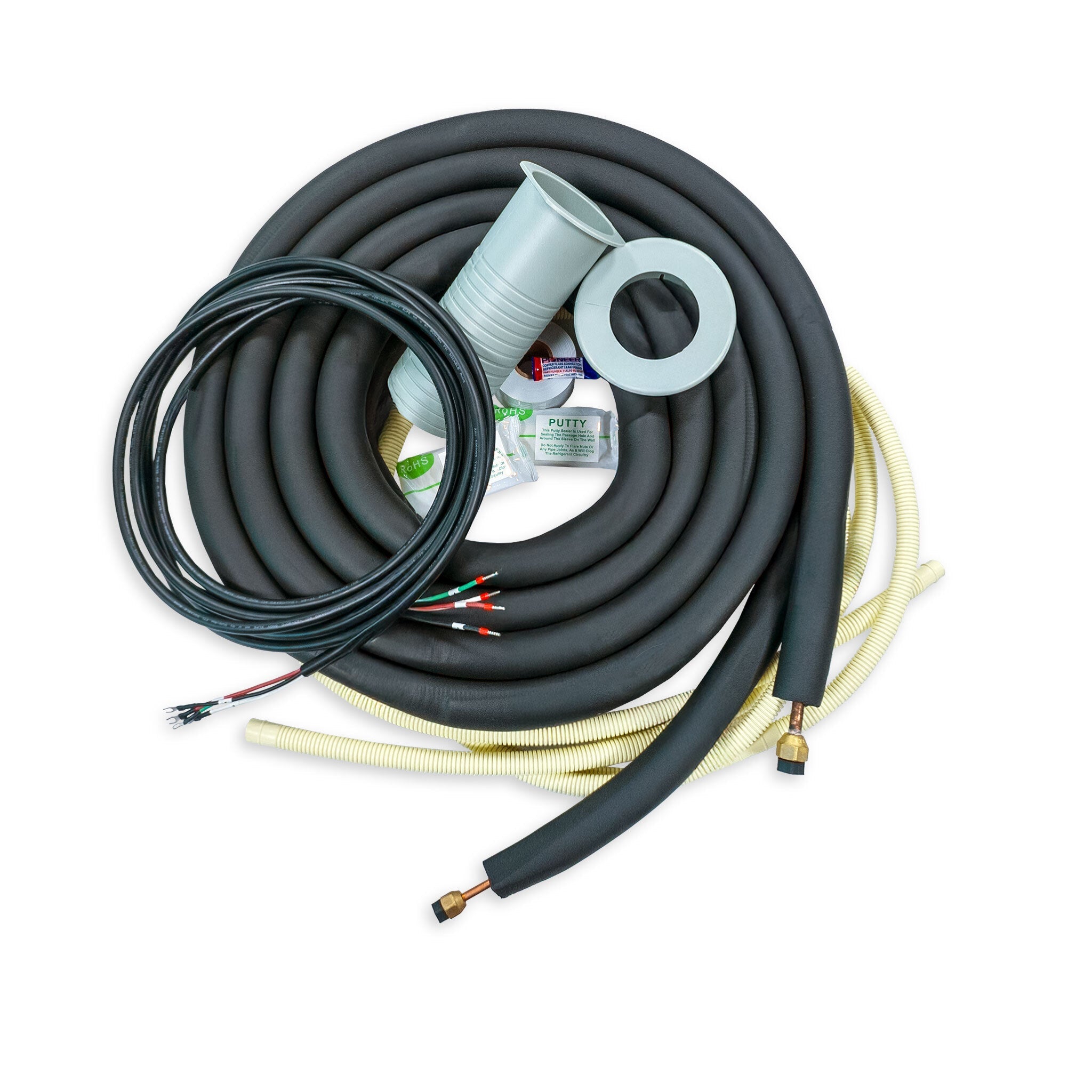

• System Kit
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 23,000 BTU/h
  • Cooling Capacity Range: 7,550~25,200 BTU/h
  • Cooling SEER2: 22.5 BTU/W.h
  • Cooling EER2: 11.7 BTU/W.h
  • Heating Rated Capacity: 25,000 BTU/h
  • Heating Capacity Range: 8,700~28,300 BTU/h
  • Heating HSPF2 (Region IV/V): 10.4 / 9.4 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.5 / 2.0 W/W
  • Refrigerant Type: R454b
  • Recommended Room Size: 750~1,000 sq ft
  • Minimum Room Size: 62 sq ft

  • Piping Diameter: 5/8" (Gas) / 1/4" (Liquid)
  • AHRI Reference: 217048761

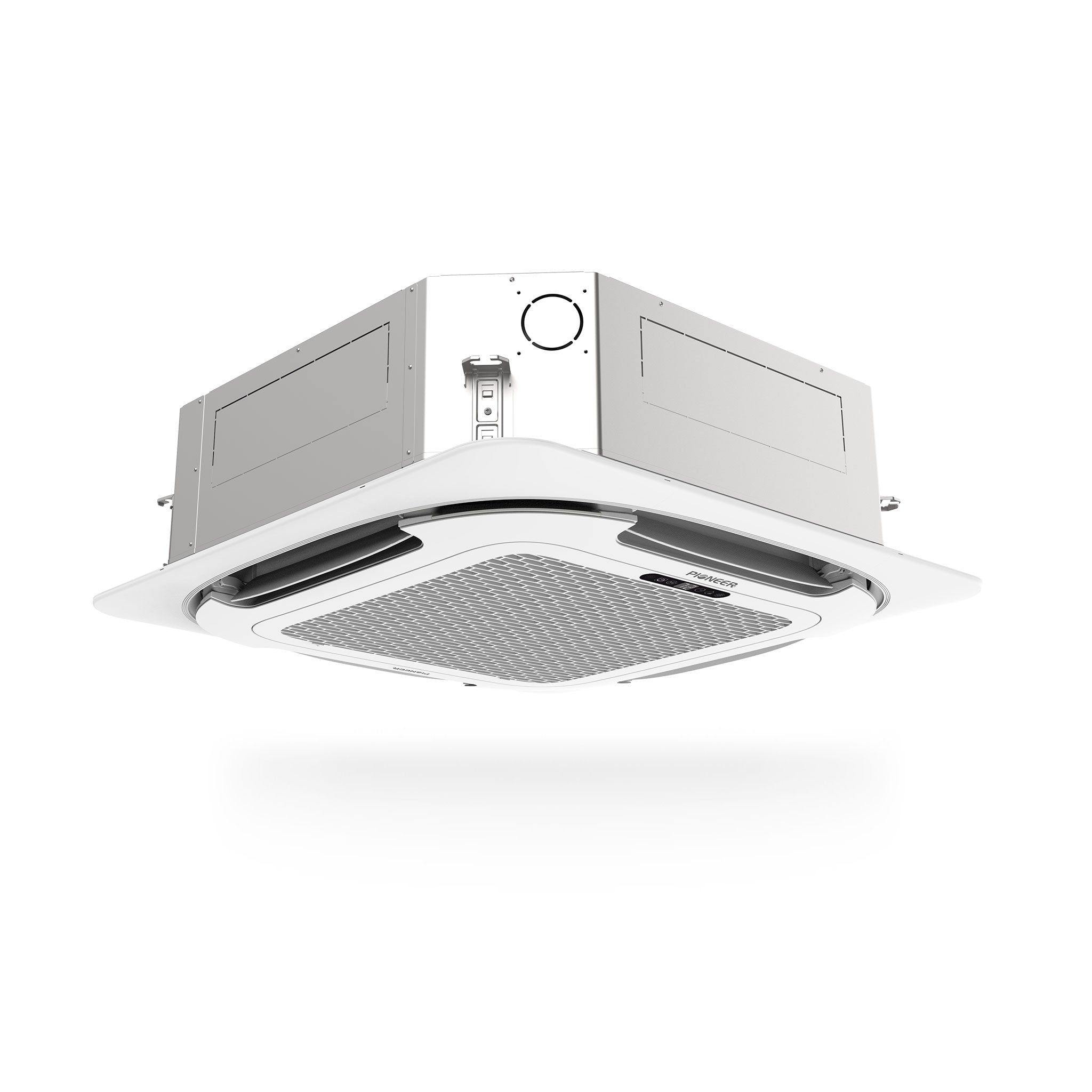

• Indoor Unit
  • Part Number: CT024GLSILCFHG
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 735 / 676 / 529 / 423 / 394 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 50 / 47 / 43 / 38 / 34 dB(A)
  • Product Dimensions (WDH): 33"-1/8 x 33"-3/4 x 10"-3/4 Inches
  • Carton Dimensions (WDH): 36"-7/8 x 36"-7/8 x 11"-1/2 Inches
  • Net / Gross Weight: 51.8 / 59.5 lbs

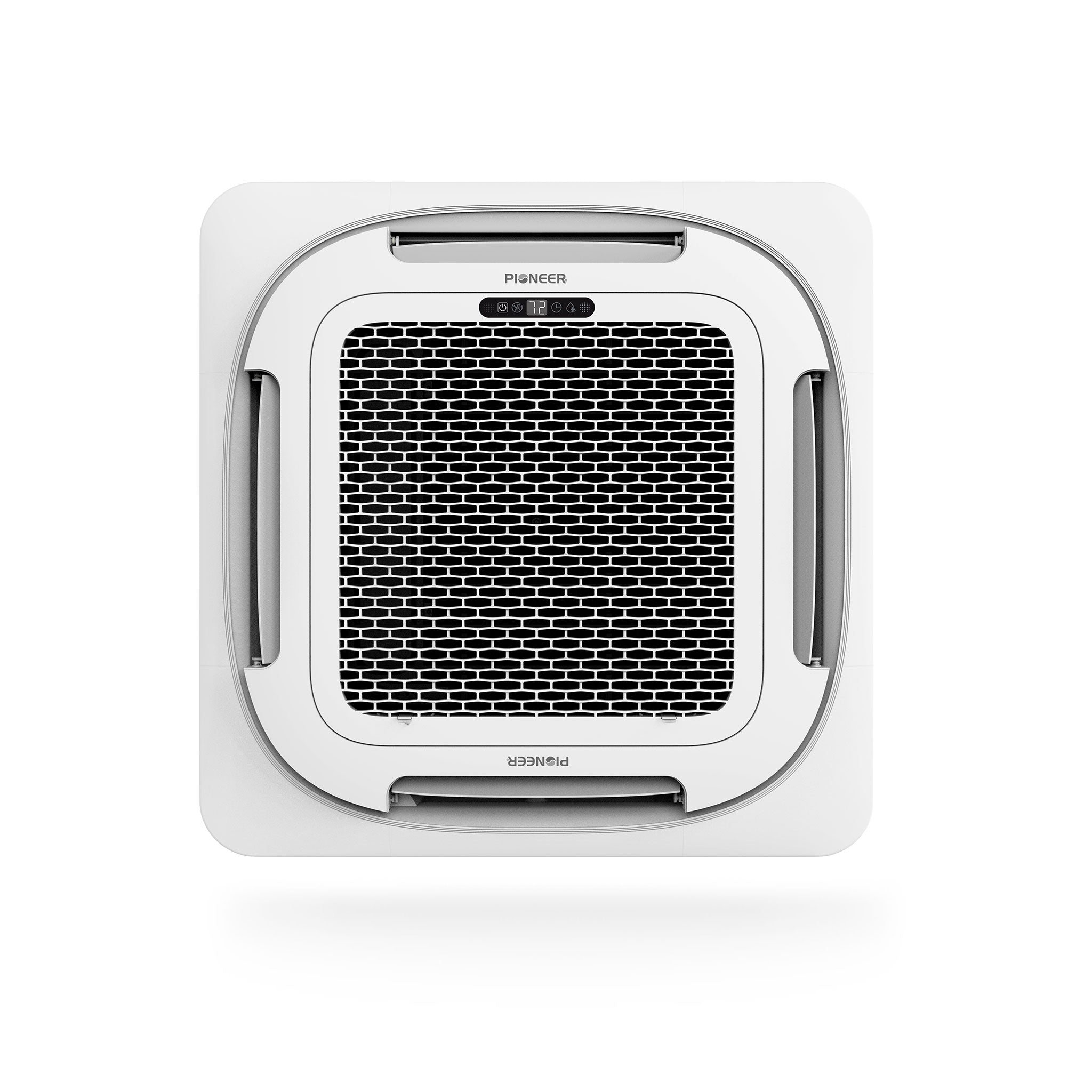

• Decorative Panel
  • Part Number: CT2460DPNL
  • Product Dimensions (WDH): 37"-3/8 x 37"-3/8 x 2"-7/8
  • Carton Dimensions (WDH): 41"-1/2 x 41"-1/2 x 3"-1/2
  • Net / Gross Weight: 13.2 / 19.8 lbs

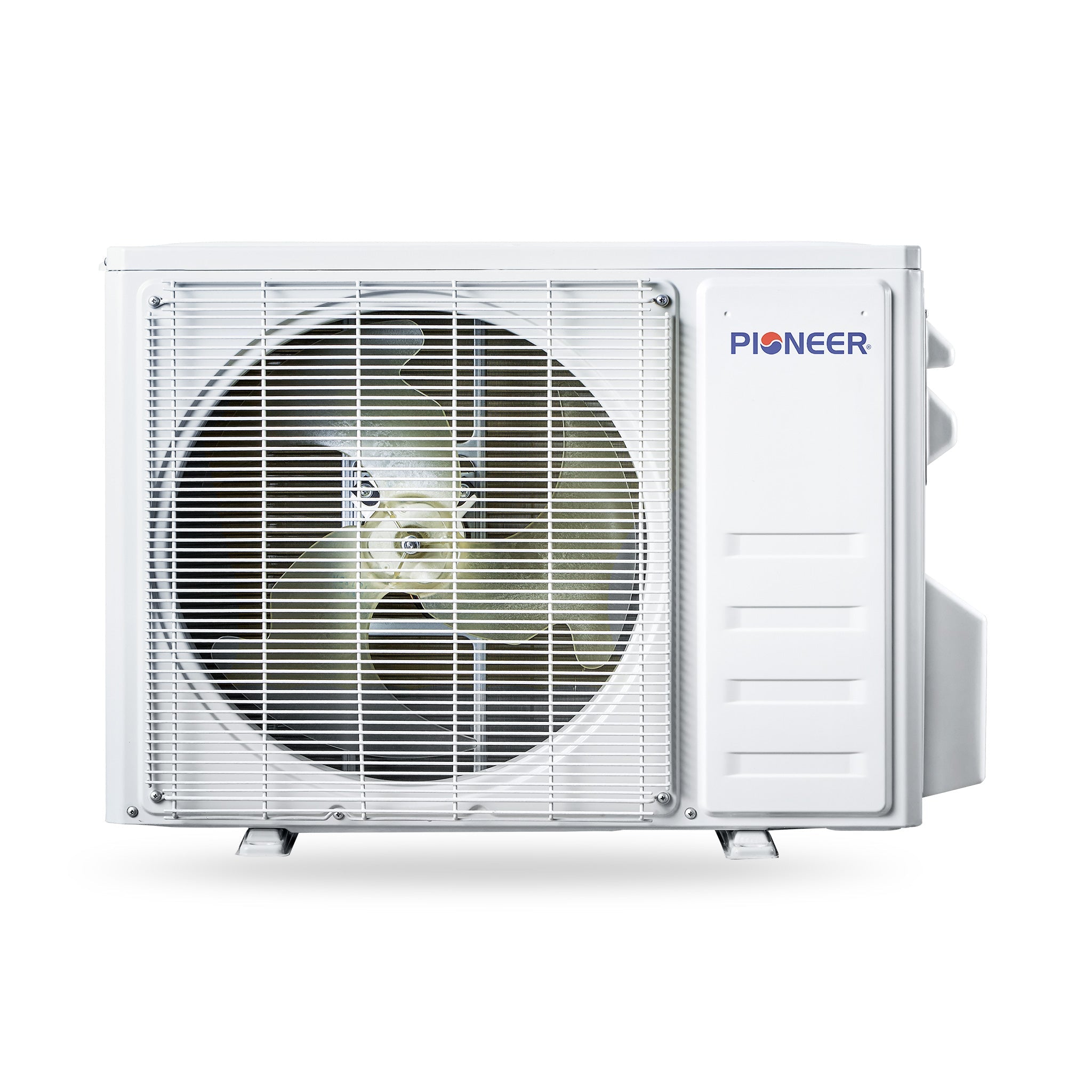

• Outdoor Unit
  • Part Number: YN024GLSI24RPG
  • Breaker Needed: 25A (double-pole)
  • Sound Level: 54 dB(A)
  • Net Dimensions (WDH): 38"-1/2 x 16"-5/8 x 31"-5/8 Inches
  • Carton Dimensions (WDH): 40"-1/4 x 18"-7/8 x 31"-7/8 Inches
  • Net / Gross Weight: 104.7 / 119.0 lbs.

Dimension Chart
