Pioneer® Quantum Ultra™ 48,000 BTU 17 SEER2 230V Slim-Duct Ceiling Concealed Mini-Split Air Conditioner Inverter Heat Pump Full Set

Summary

• High Efficiency Quantum Ultra Slim-Duct Ceiling Concealed Split Heat Pump System
• Cooling capacity: 48,000 BTU/H with 17.1 SEER2 / 10.0 EER2 efficiency
• Heating capacity: 50,000 BTU/H with 9.8 HSPF2 / 3.49 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph

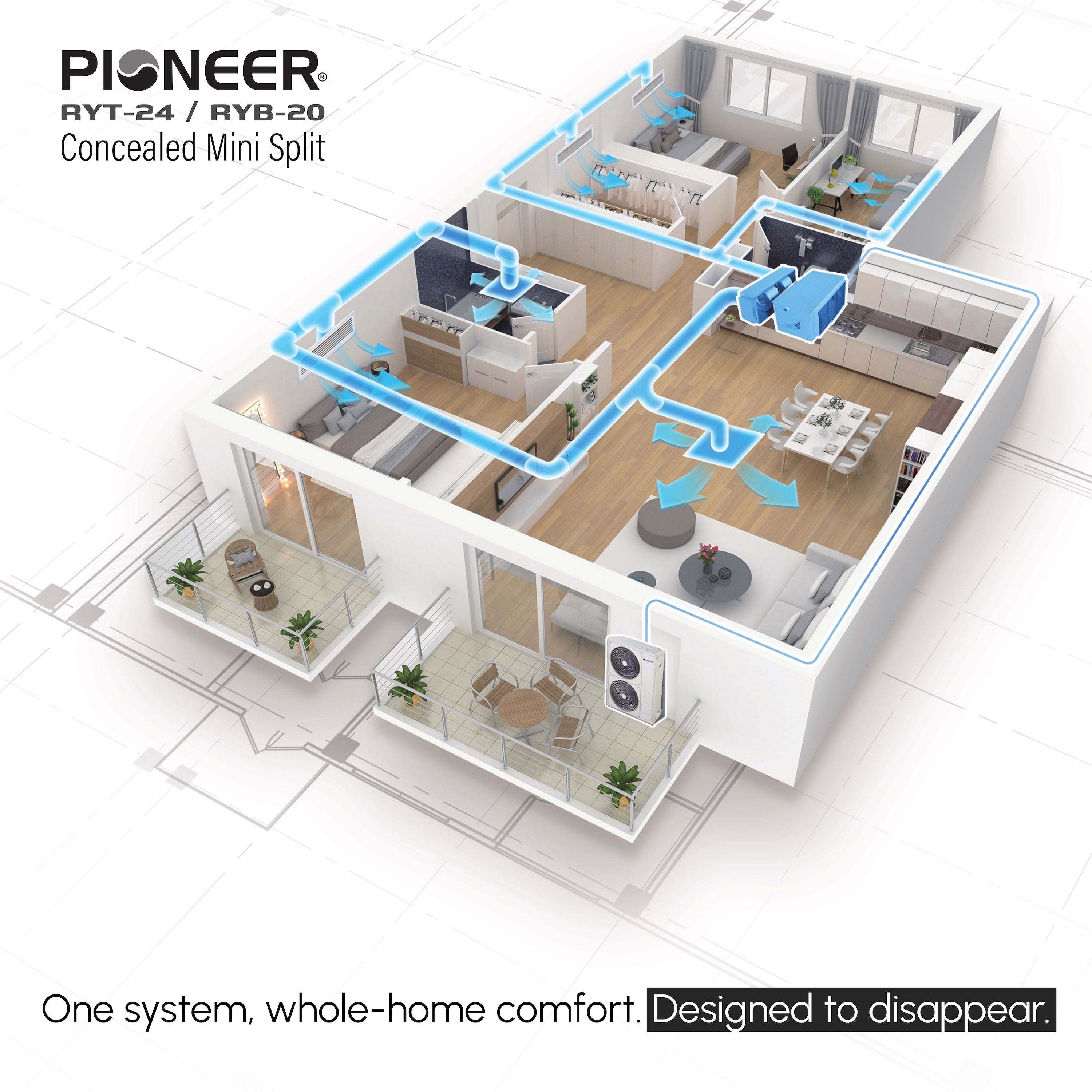

• Slim-Duct Ceiling Concealed Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Standard Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

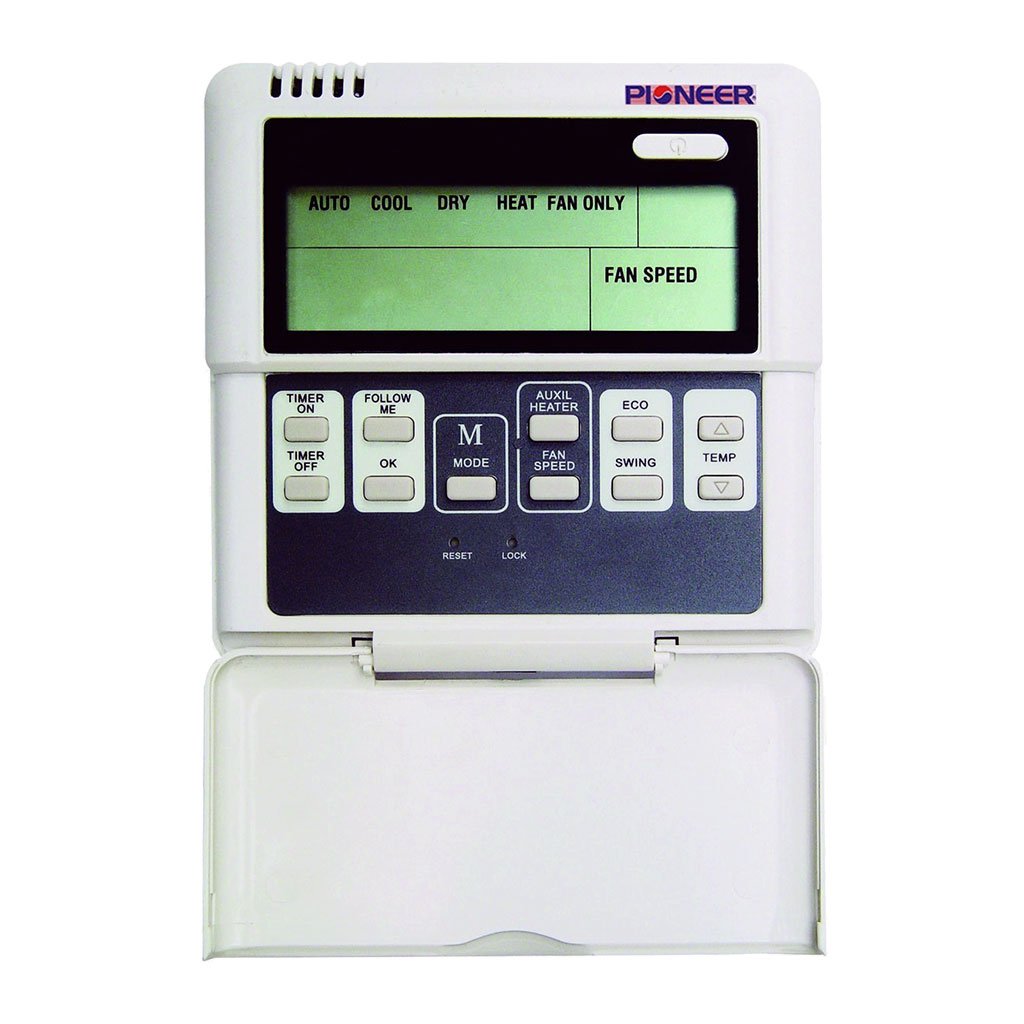

• Functional Remote with:
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • FOLLOW ME, to Detect and Adjust to Local Temperature

Technical Information & Performance

• AHRI Certificate
• Energy Guide
• Submittal Sheet

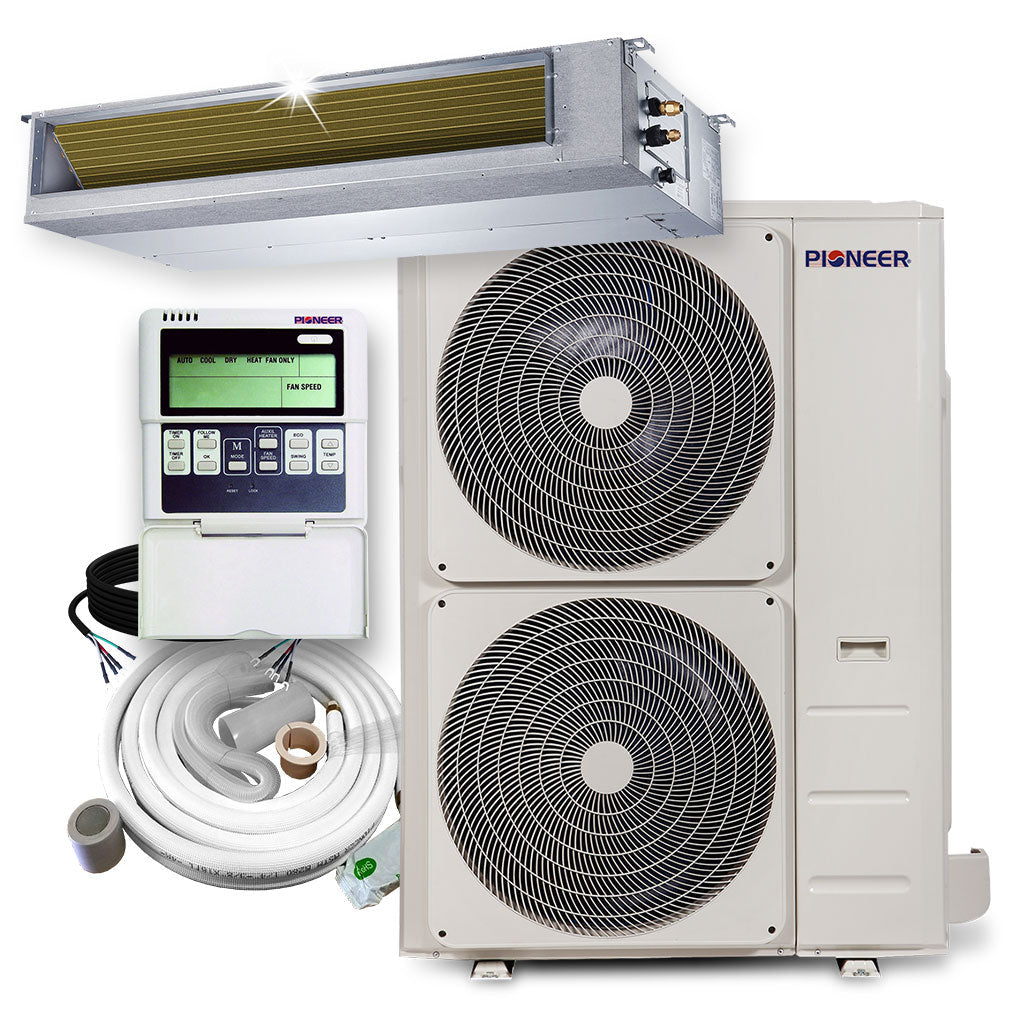

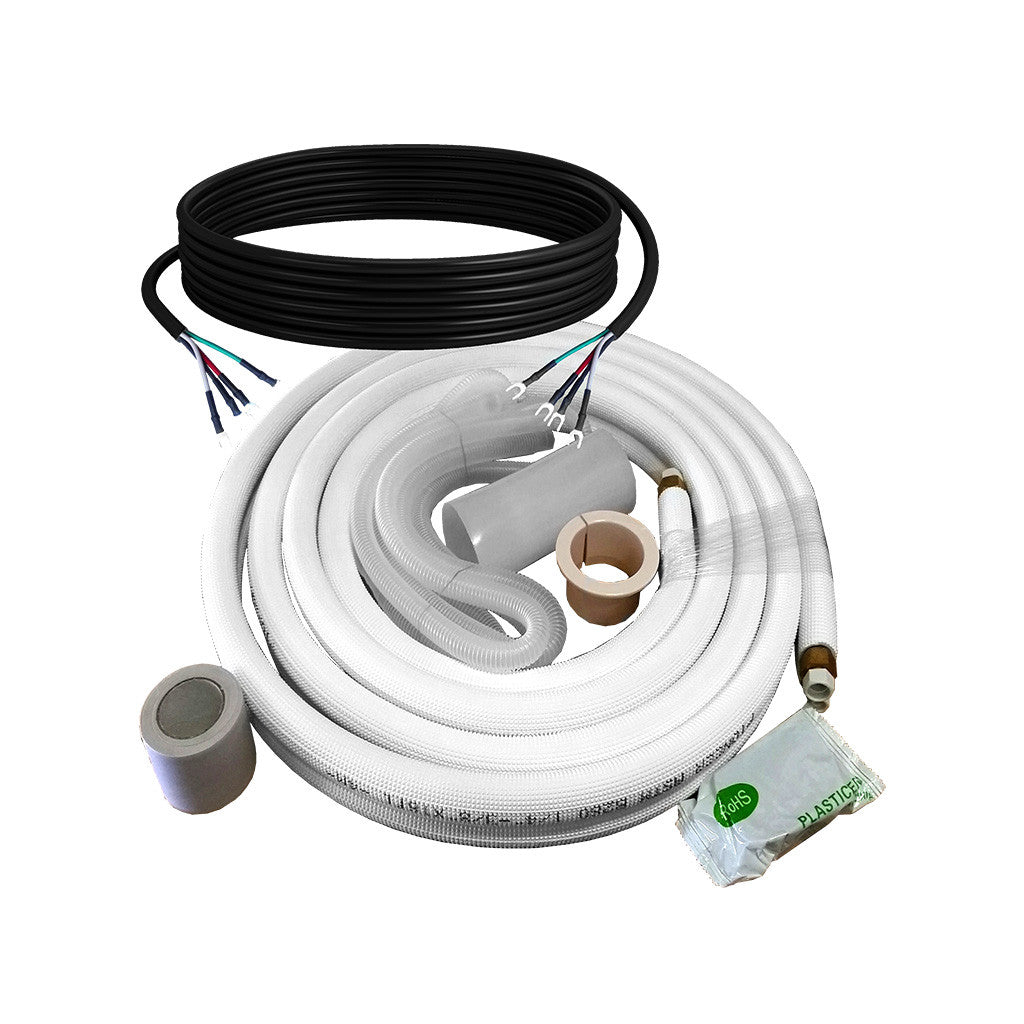

• System Kit
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 48,000 BTU/h
  • Cooling Capacity Range: 11,000~56,500 BTU/h
  • Cooling SEER2: 17.1 BTU/W.h
  • Cooling EER2: 10.0 BTU/W.h
  • Heating Rated Capacity: 50,000 BTU/h
  • Heating Capacity Range: 11,200~60,500 BTU/h
  • Heating HSPF2 (Region IV/V): 9.8 / 7.7 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.49 / 2.0 W/W
  • Refrigerant Type: R454b
  • Recommended Room Size: 1,400~1,800 sq ft
  • Minimum Room Size: 143 sq ft
  • Piping Diameter: 3/4" (Gas) / 3/8" (Liquid)
  • AHRI Reference: 218010994

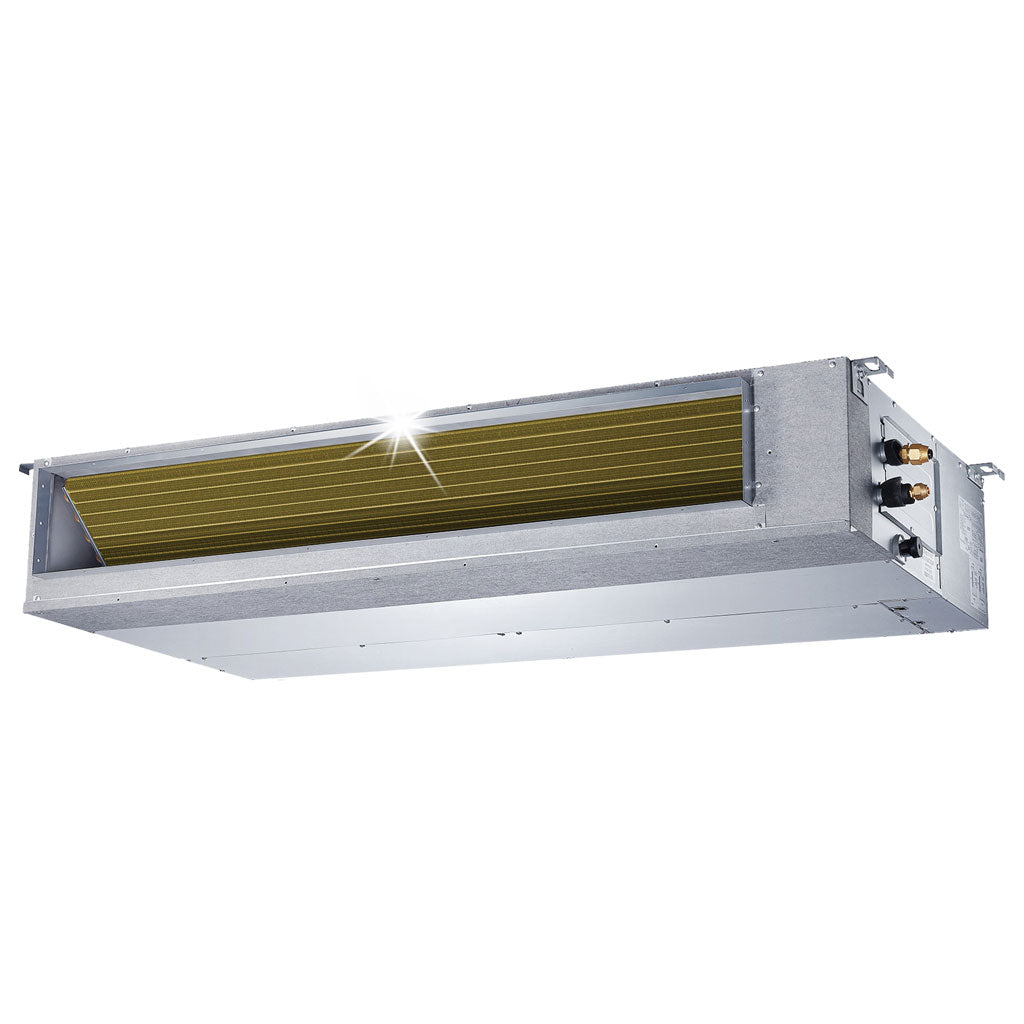

• Indoor Unit
  • Part Number: RB048GMSILDFHG
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 1,467 / 1,471 / 1,294 / 1,059 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 51 / 46 / 42 / 40 dB(A)
  • Product Dimensions (WDH): 47"-1/4 x 29"-1/2 x 11"-7/8 Inches
  • Carton Dimensions (WDH): 56"-1/8 x 33"-7/8 x 14"-1/8 Inches
  • Net / Gross Weight: 111.3 / 124.8 lbs

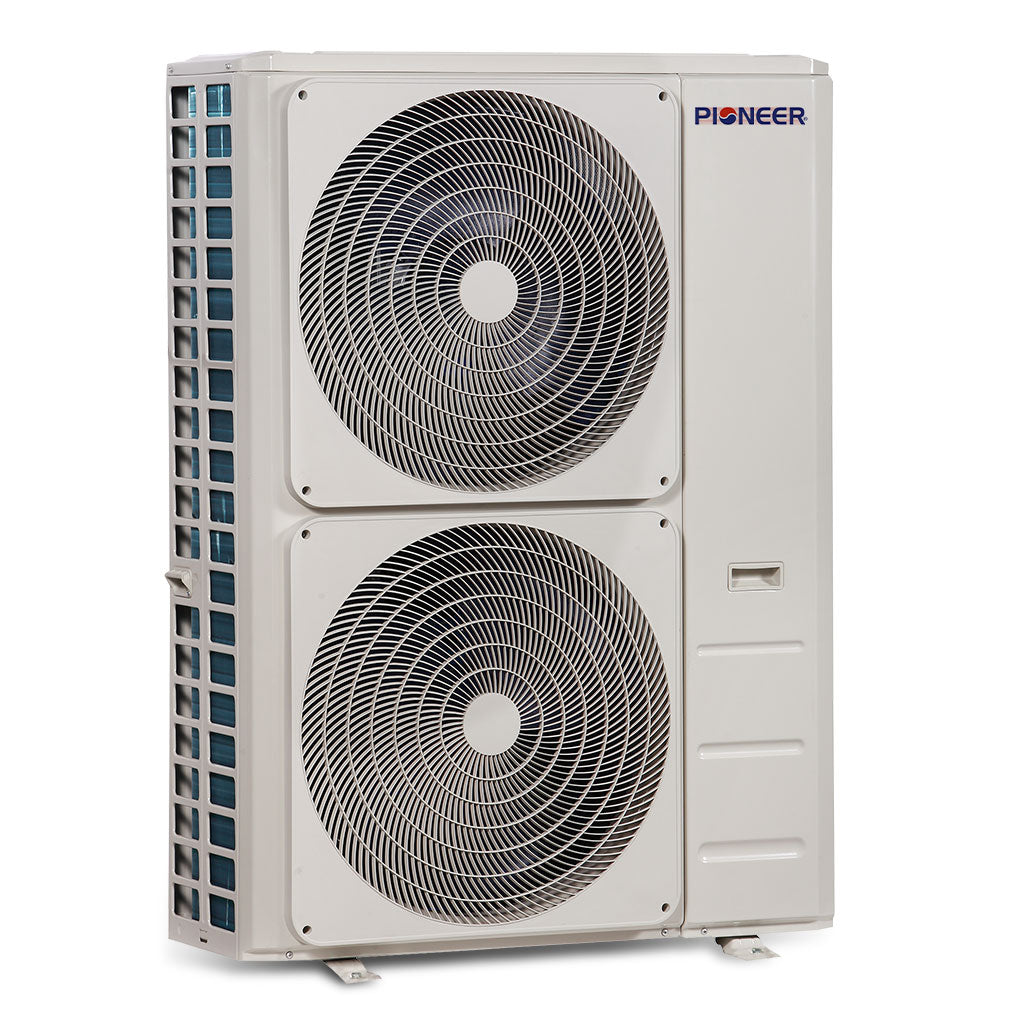

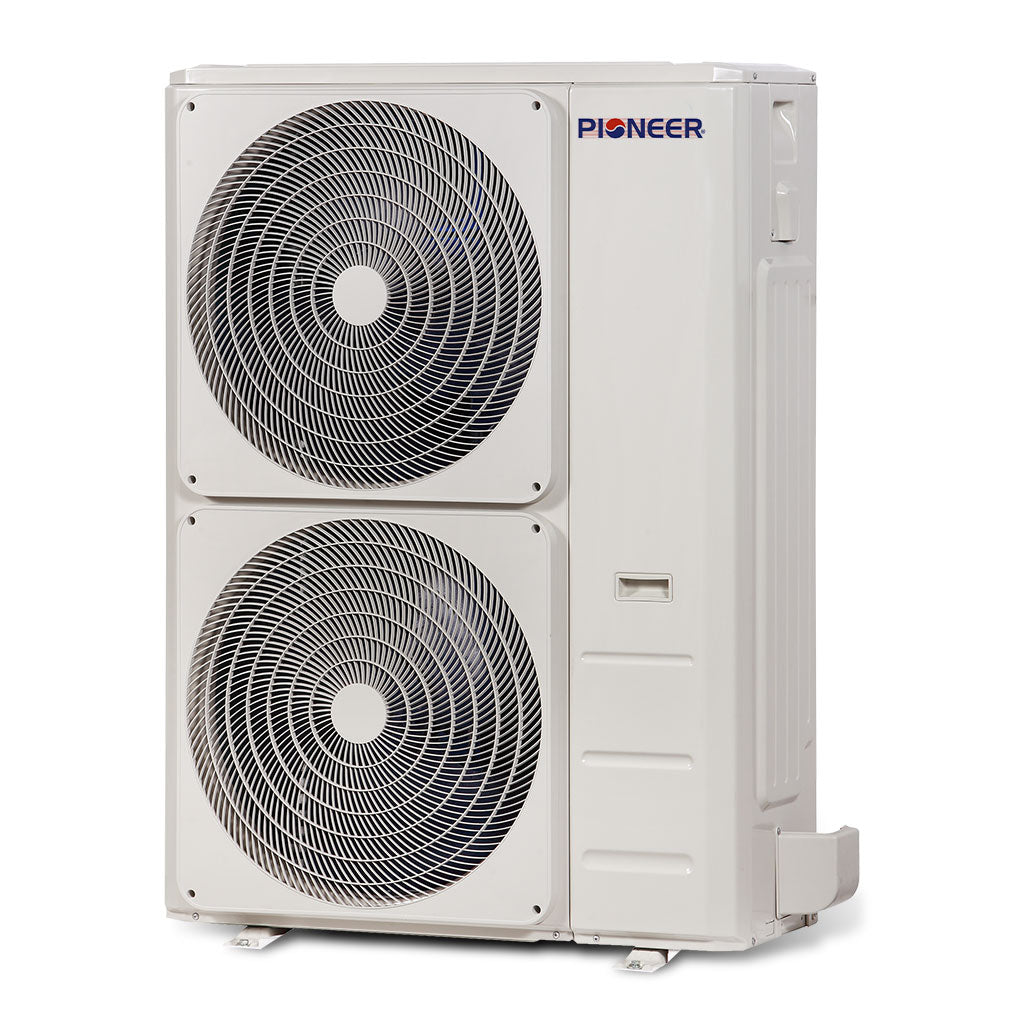

• Outdoor Unit
  • Part Number: YN048GMSI20RUG
  • Breaker Needed: 45A (double-pole)
  • Sound Level: 64 dB(A)
  • Net Dimensions (WDH): 37"-1/2 x 16"-3/8 x 52"-1/2 Inches
  • Carton Dimensions (WDH): 43"-1/8 x 19"-1/2 x 57"-1/2 Inches
  • Net / Gross Weight: 208.8 / 237.5 lbs

Dimension Chart
