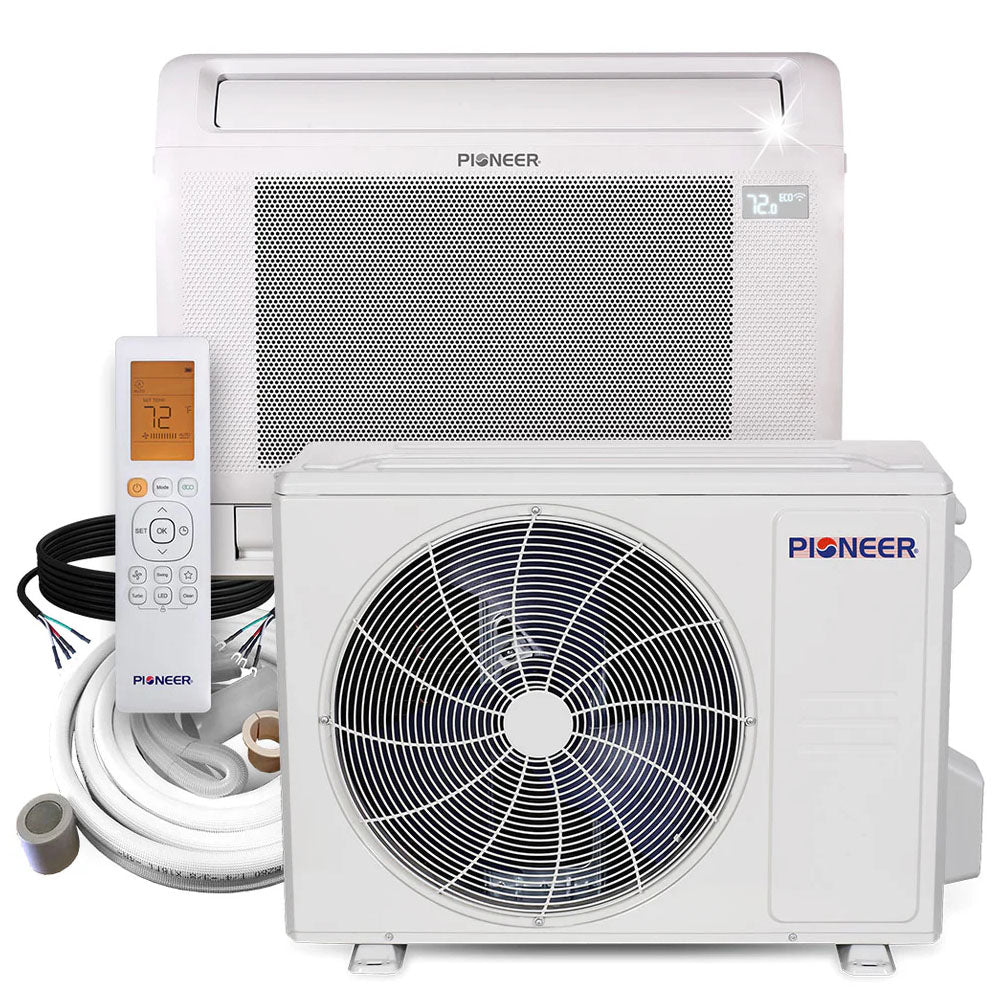

Pioneer® Quantum Ultra™ 12,000 BTU 24.6 SEER2 230V Floor/Low-Wall Mounted Console Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set

Summary

• High Efficiency Quantum Ultra Floor/Low-Wall Mounted Console Split Heat Pump System
• Cooling capacity: 12,000 BTU/H with 24.6 SEER2 / 12.7 EER2 efficiency
• Heating capacity: 12,000 BTU/H with 11.0 HSPF2 / 3.9 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph

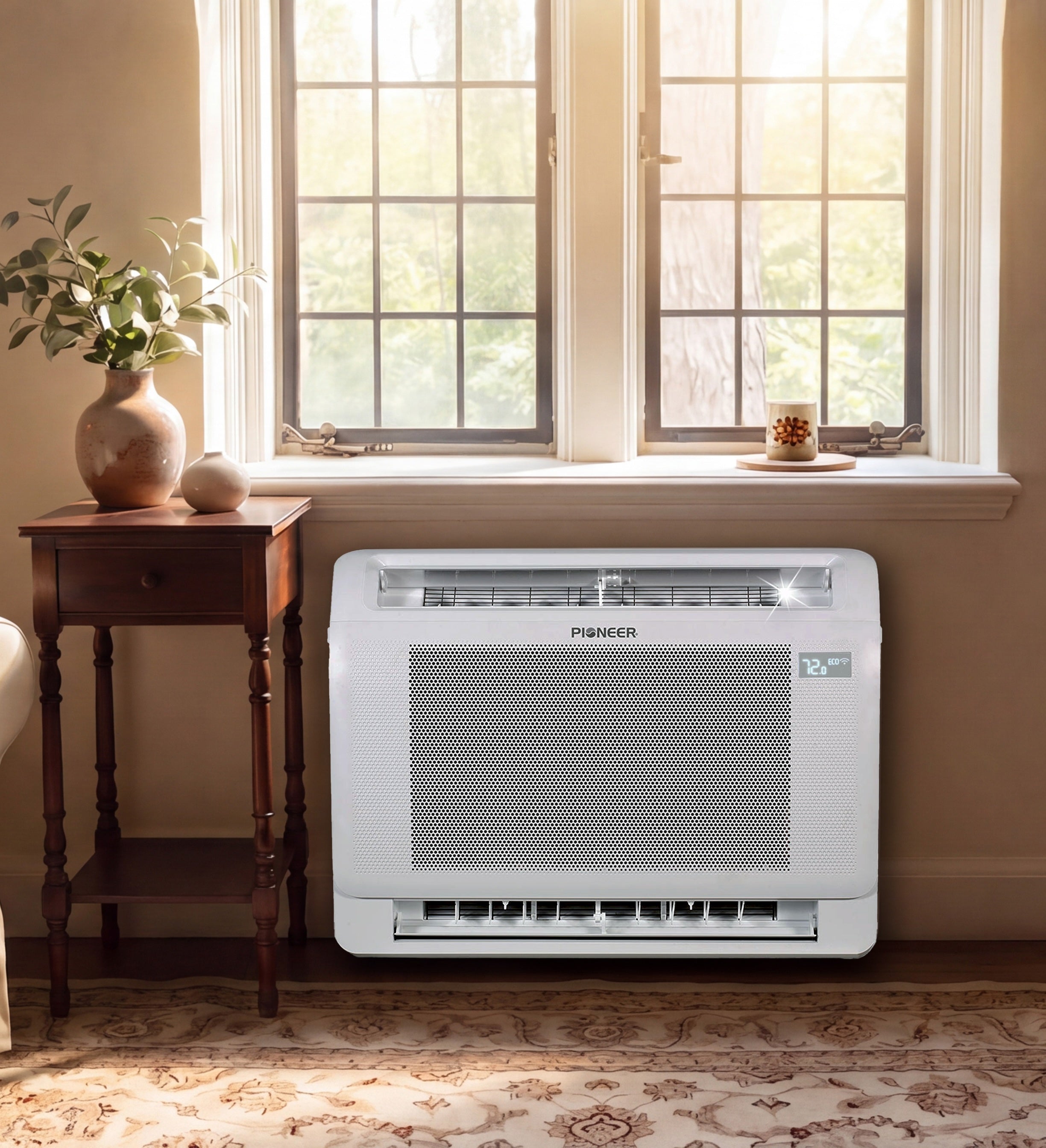

• Floor/Low-Wall Mounted Console Ductless Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Standard Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

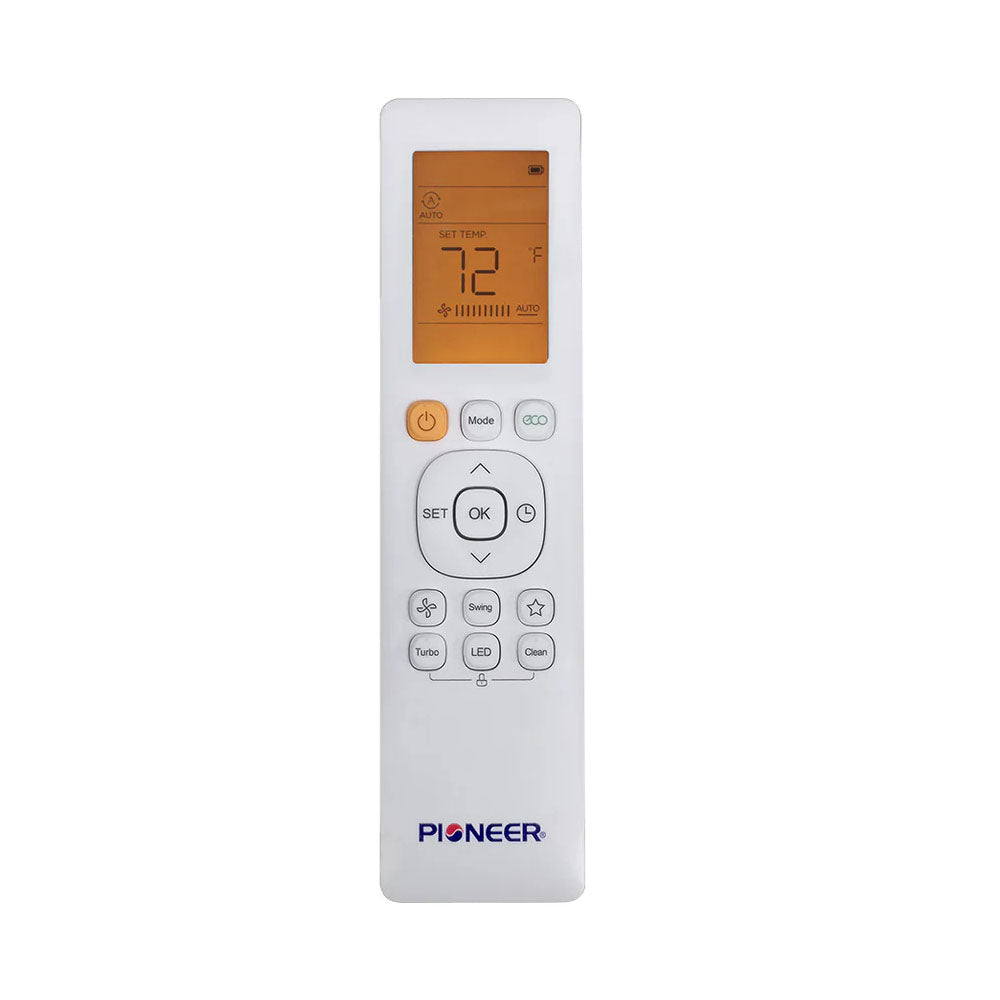

• Functional Remote with:
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • FOLLOW ME, to Detect and Adjust to Local Temperature

Technical Information & Performance

• AHRI Certificate
• Energy Guide
• Submittal Sheet

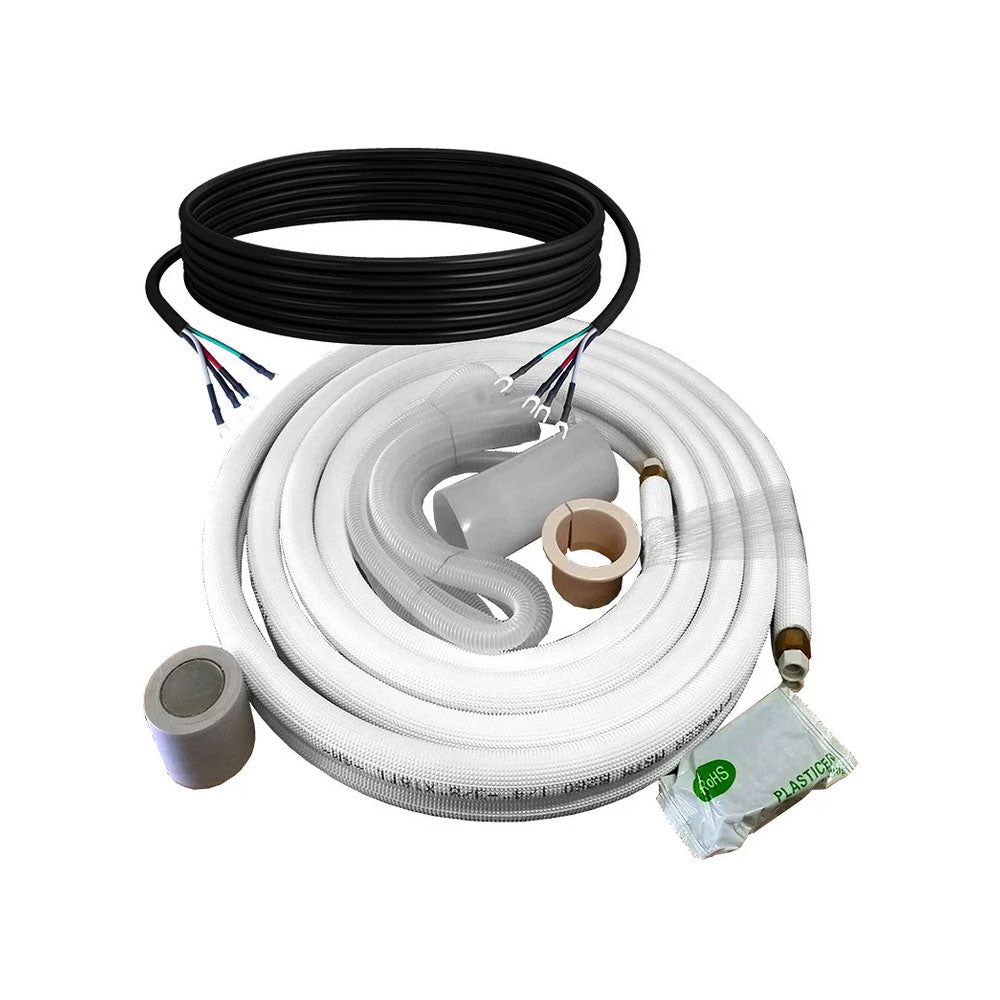

• System Kit
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 12,000 BTU/h
  • Cooling Capacity Range: 4,000~13,100 BTU/h
  • Cooling SEER2: 24.6 BTU/W.h
  • Cooling EER2: 12.7 BTU/W.h
  • Heating Rated Capacity: 12,000 BTU/h
  • Heating Capacity Range: 5,100~12,900 BTU/h
  • Heating HSPF2 (Region IV/V): 11.0 / 8.2 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.9 / 2.5 W/W
  • Refrigerant Type: R454b
  • Recommended Room Size: 350~500 sq ft
  • Minimum Room Size: 154 sq ft
  • Piping Diameter: 3/8" (Gas) / 1/4" (Liquid)
  • AHRI Reference: 218010989

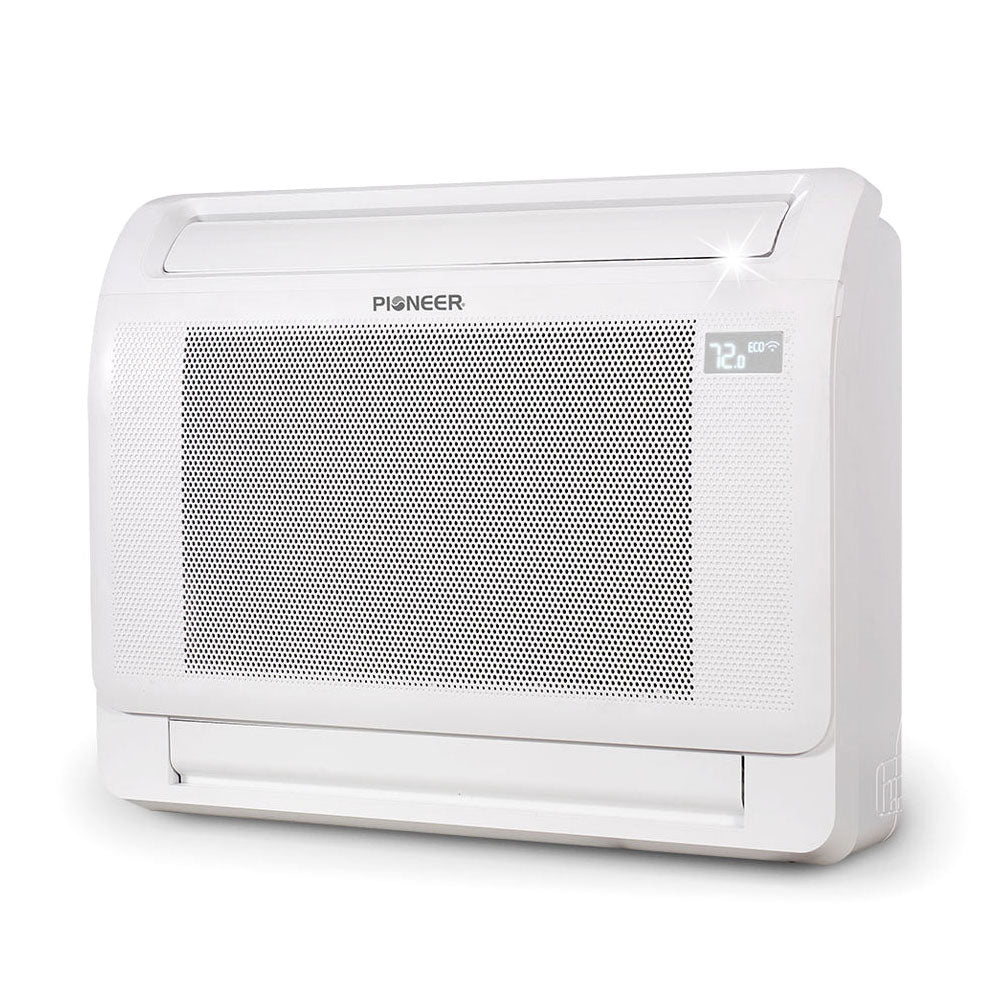

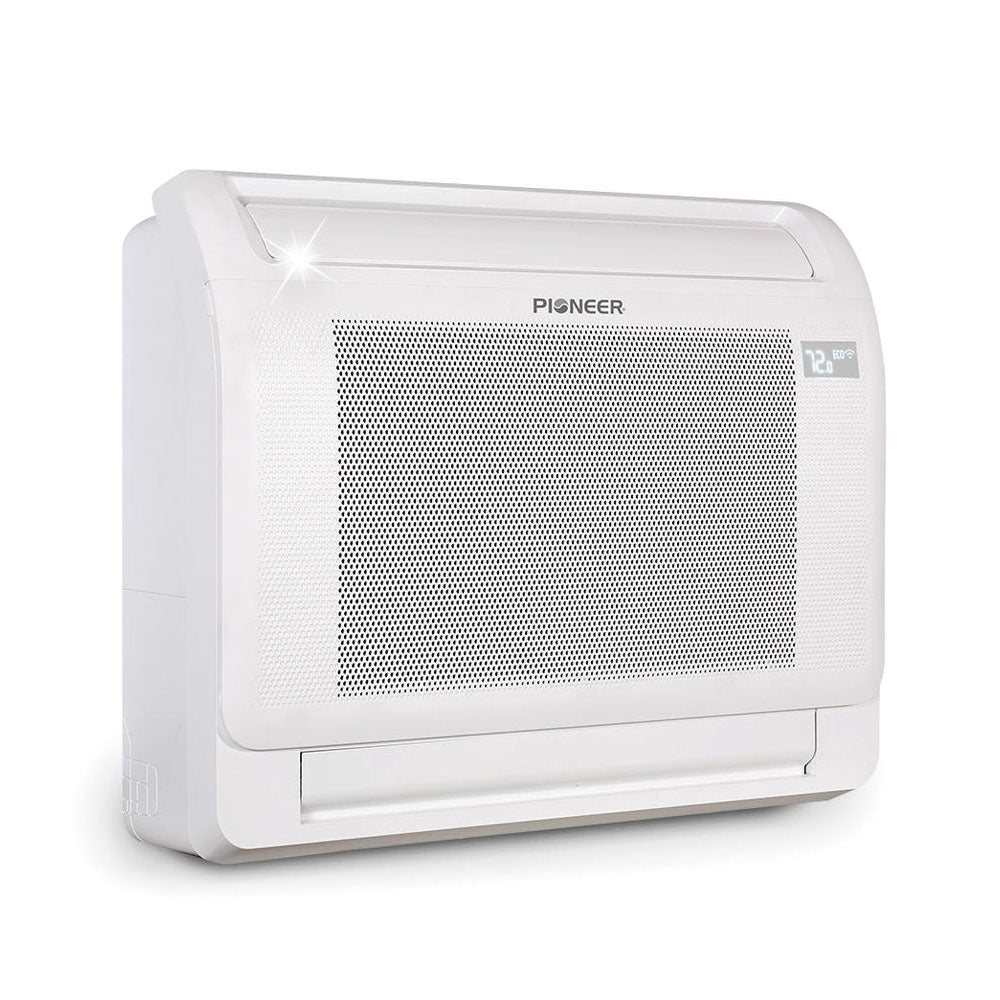

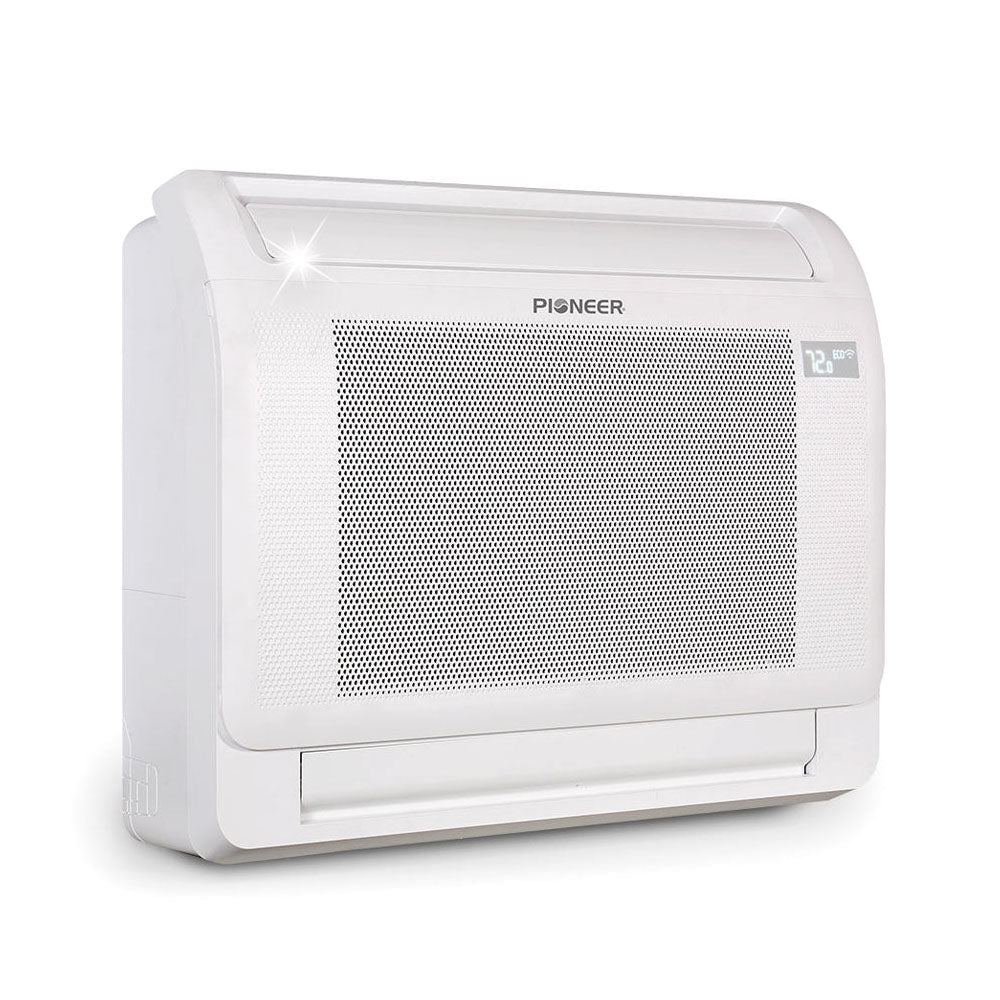

• Indoor Unit
  • Part Number: FB012GMSILDFHG
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 441 / 386 / 324 / 188 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 39 / 34.5 / 29.5 dB(A)
  • Product Dimensions (WDH): 31"-1/4 x 7"-7/8 x 24"-1/2 Inches
  • Carton Dimensions (WDH): 34"-1/8 x 11" x 28"-3/8 Inches
  • Net / Gross Weight: 32.9 / 41.9 lbs

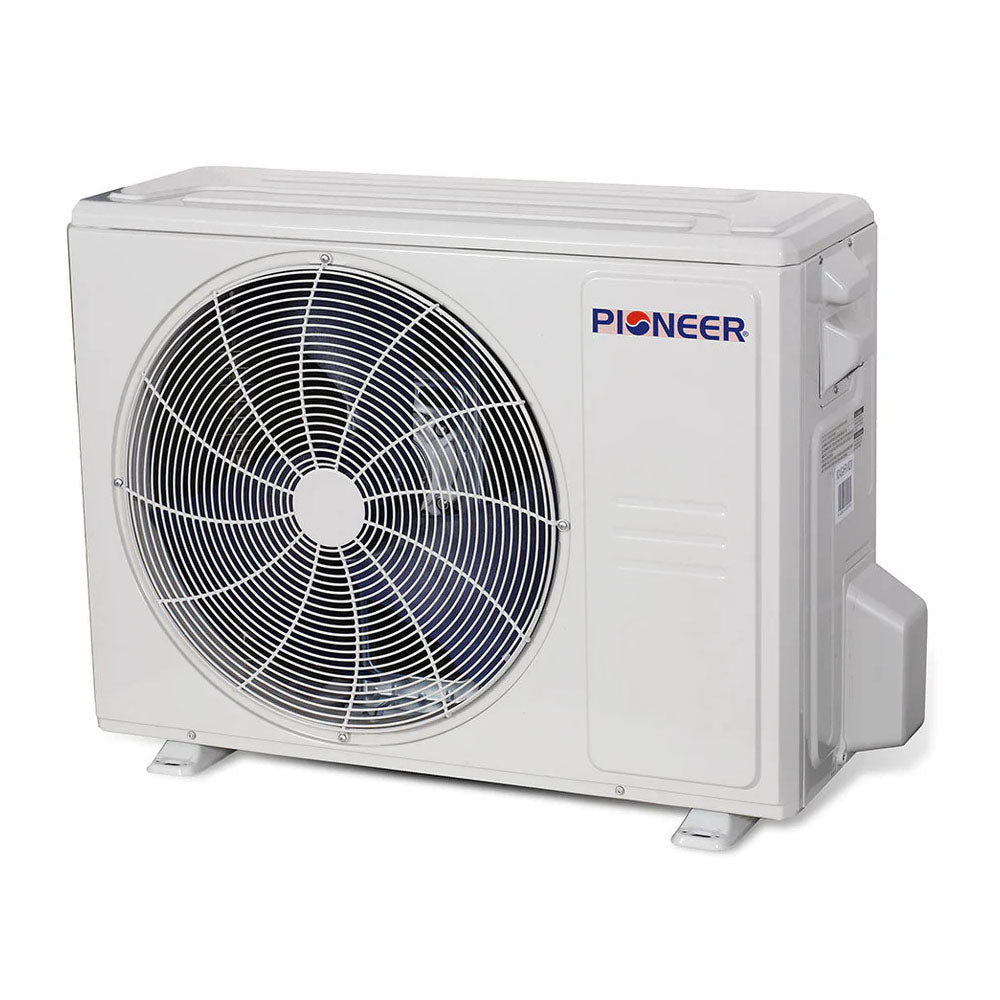

• Outdoor Unit
  • Part Number: YN012GMSI24RPG
  • Breaker Needed: 15A (double-pole)
  • Sound Level: 55 dB(A)
  • Net Dimensions (WDH): 30"-1/8 x 12" x 21"-7/8 Inches
  • Carton Dimensions (WDH): 35" x 13"-1/4 x 24" Inches
  • Net / Gross Weight: 62.1 / 67.7 lbs

Dimension Chart
