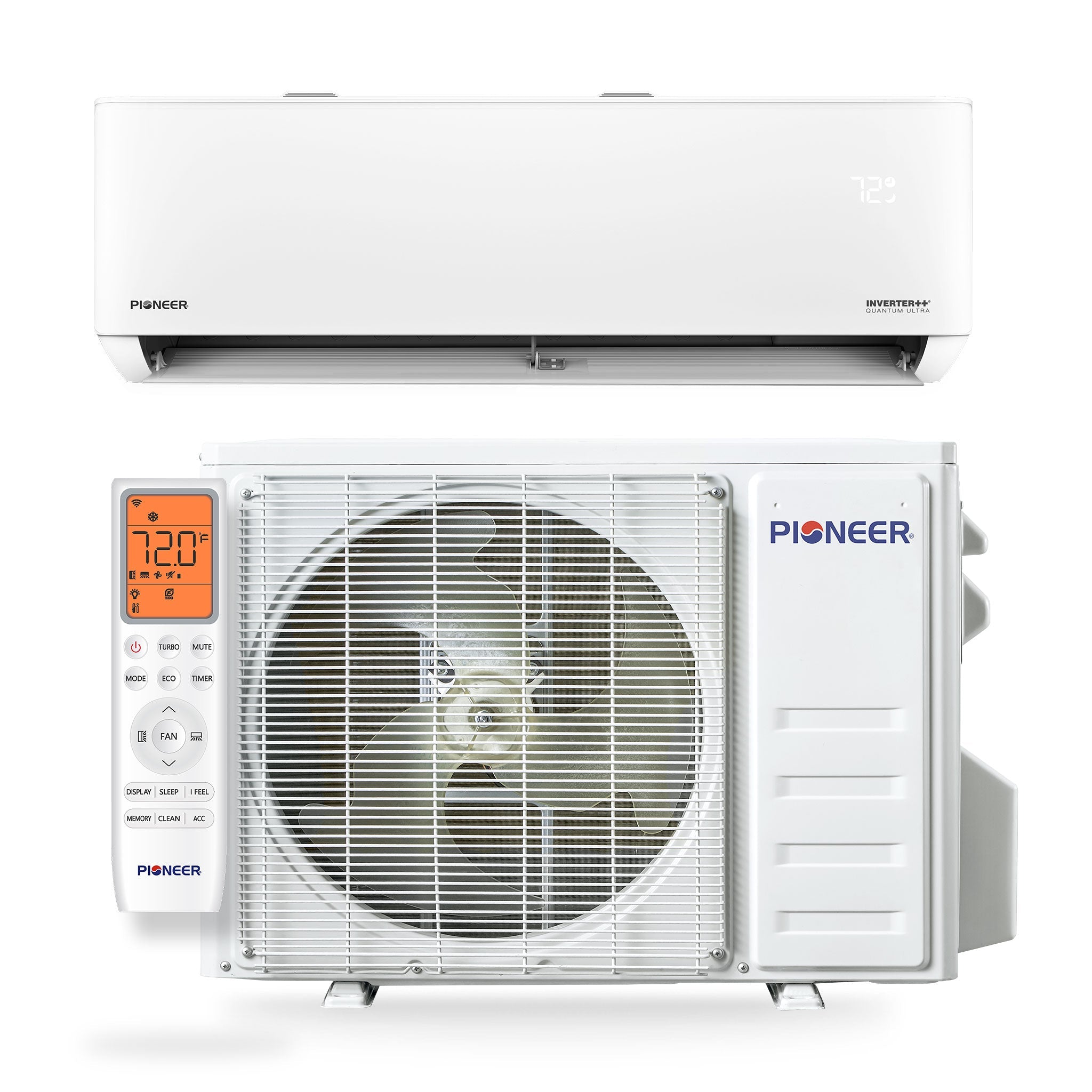

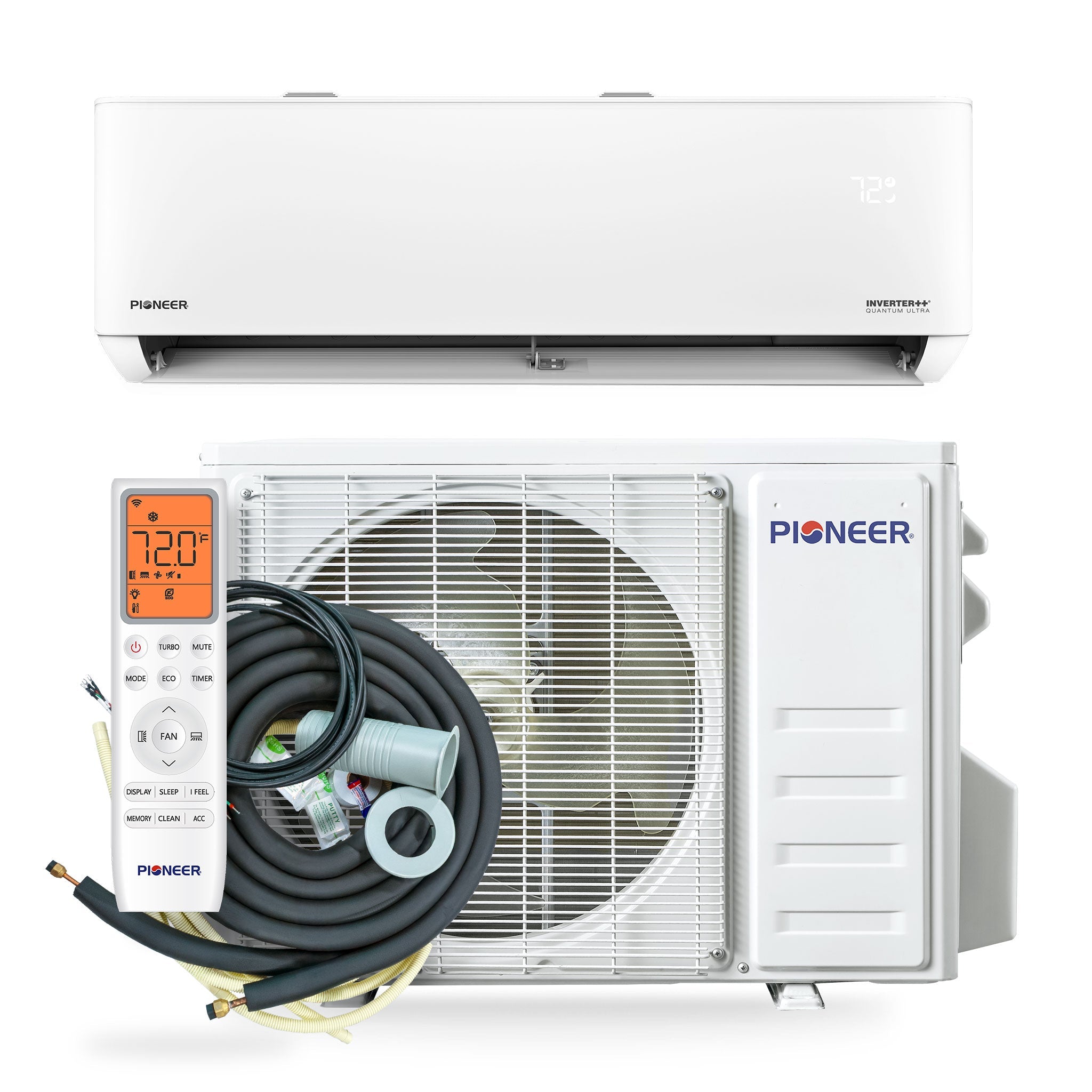

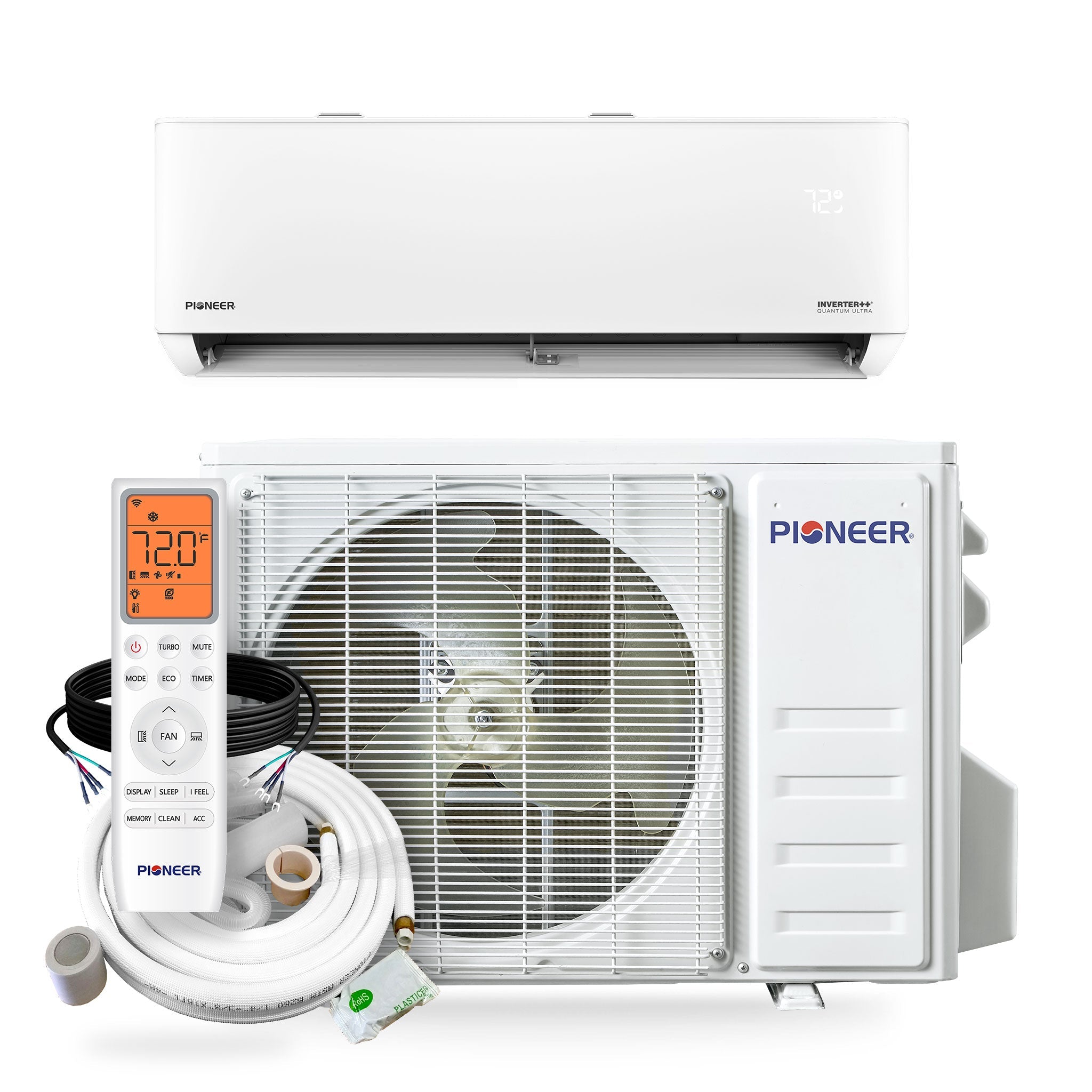

Pioneer® Quantum Ultra™ 12,000 BTU 23 SEER2 115V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Heat Pump Full Set

Summary

• Ultra High Efficiency Quantum Ultra Ductless Mini Split Heat Pump System
• Cooling capacity: 12,000 BTU/H with 23.0 SEER2 / 13.0 EER2 efficiency
• Heating capacity: 12,400 BTU/H with 10.0 HSPF2 / 3.81 COP2 efficiency
• Voltage: 110/120V, 60Hz, 1Ph
• High Wall-Mounted Ductless Air Conditioning & Heating System

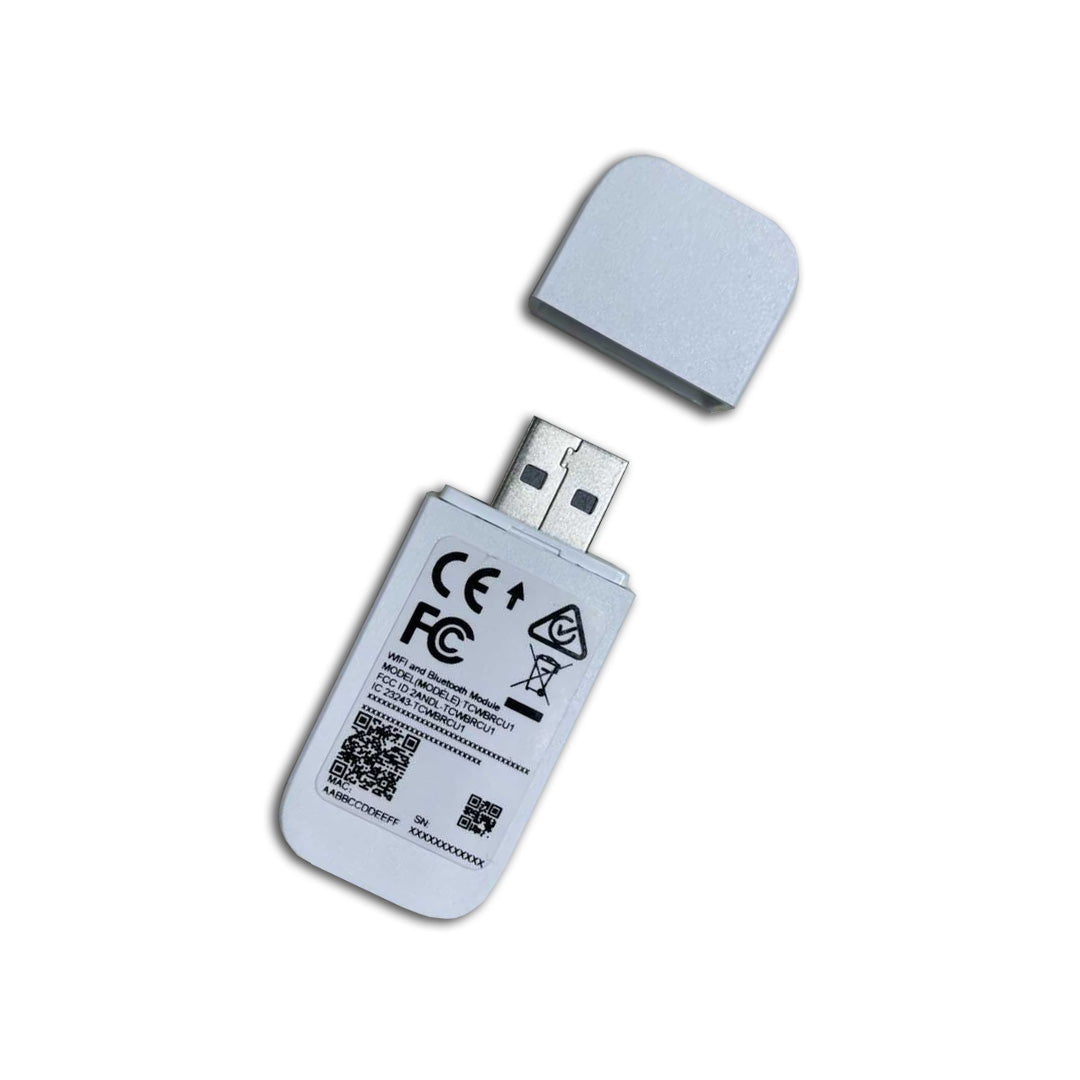

• Wi-Fi Enabled and Controllable By Smartphone via the Free Pioneer Airlink App
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
• Functional Remote with:
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

• AHRI Certificate
• Energy Guide
• Submittal Sheet

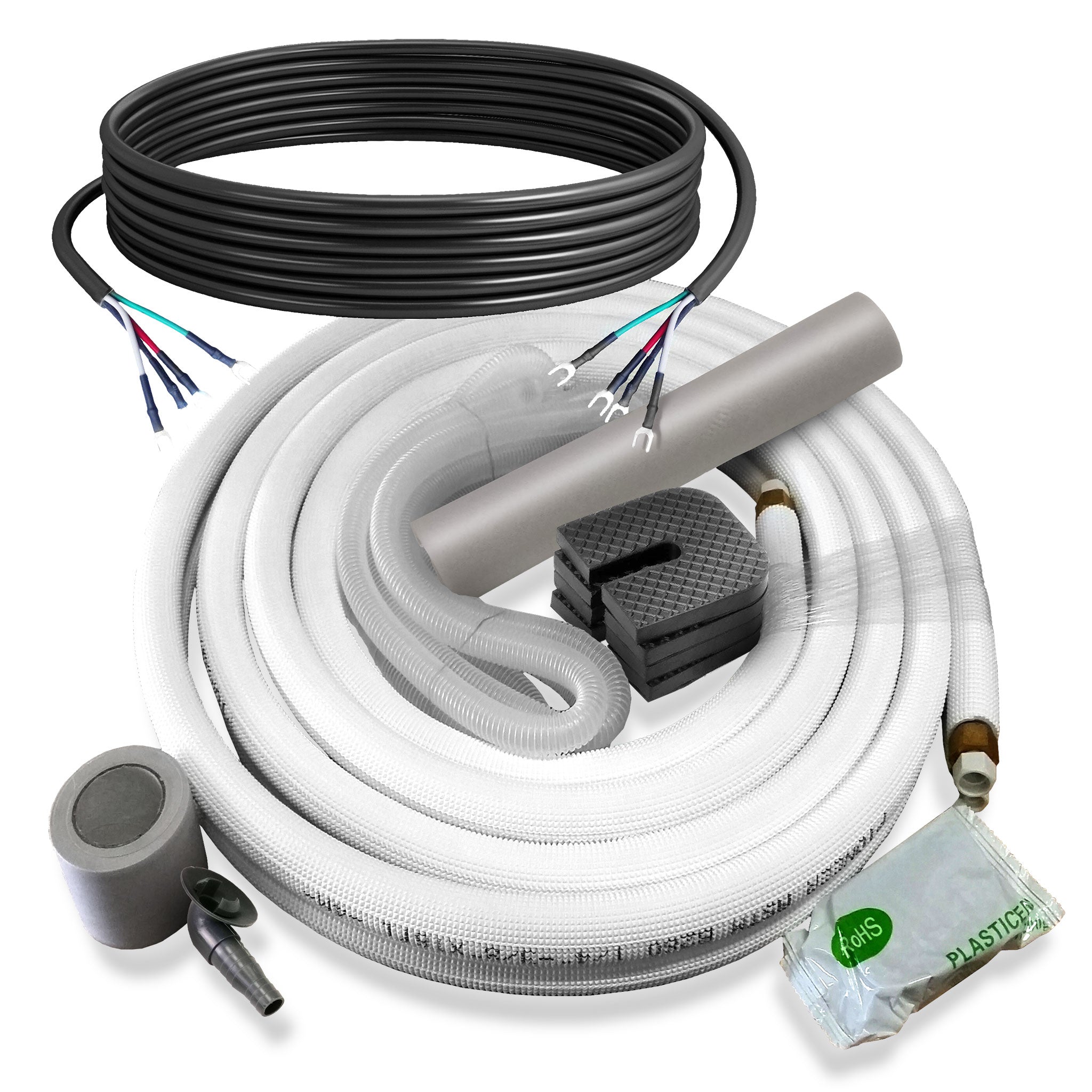

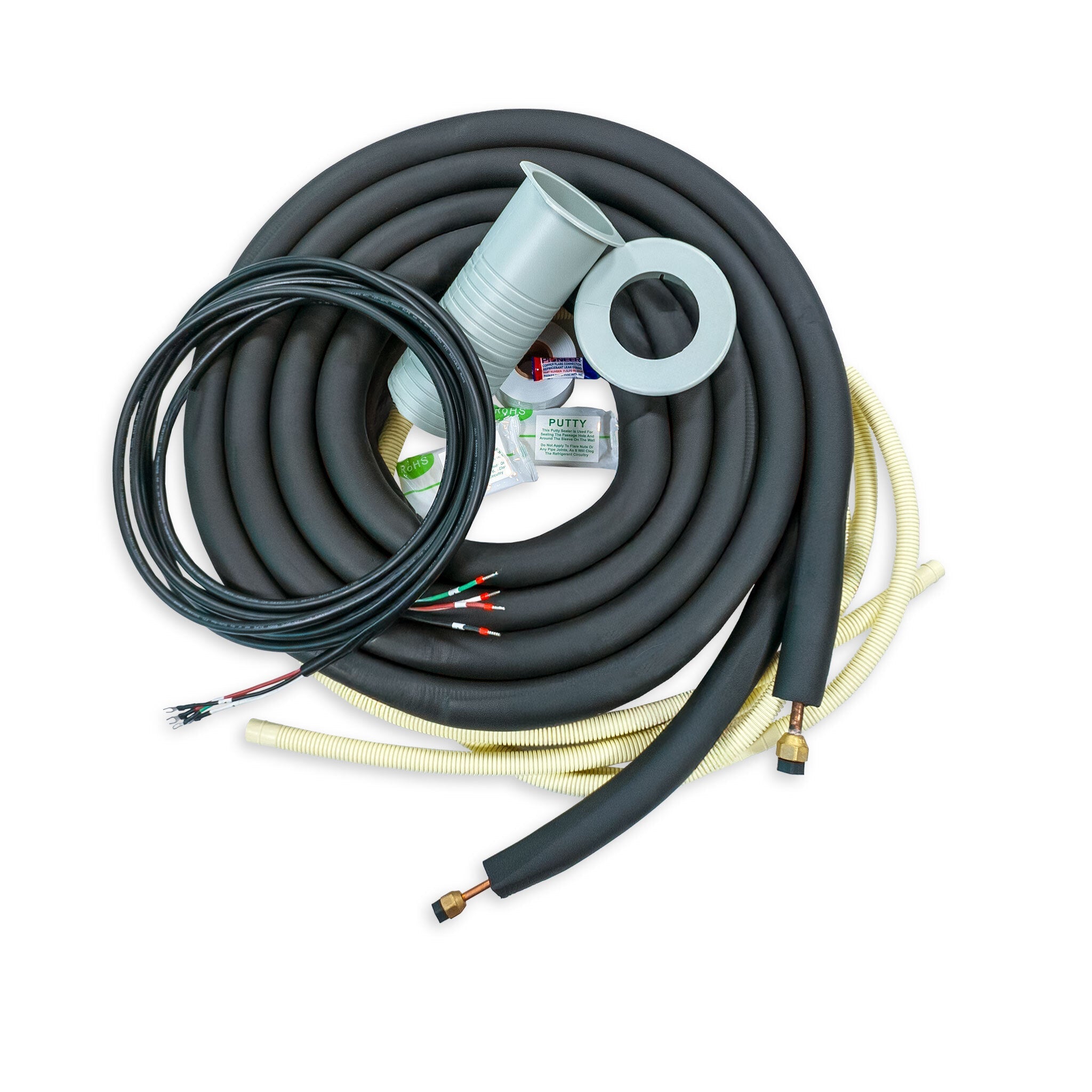

• System Kit
  • Power Supply: 110~120V, 60Hz, 1Ph
  • Cooling Rated Capacity: 12,000 BTU/h
  • Cooling Capacity Range: 2,500~12,500 BTU/h
  • Cooling SEER2: 23.0 BTU/W.h
  • Cooling EER2: 13.0 BTU/W.h
  • Heating Rated Capacity: 12,400 BTU/h
  • Heating Capacity Range: 2,500~15,000 BTU/h
  • Heating HSPF2 (Region IV/V): 10.0 / 8.6 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.81 / 2.1 W/W
  • Refrigerant Type: R454b
  • Recommended Room Size: 350~500 sq ft
  • Minimum Room Size: 40 sq ft
  • Piping Diameter: 3/8" (Gas) / 1/4" (Liquid)
  • AHRI Reference: 217048750

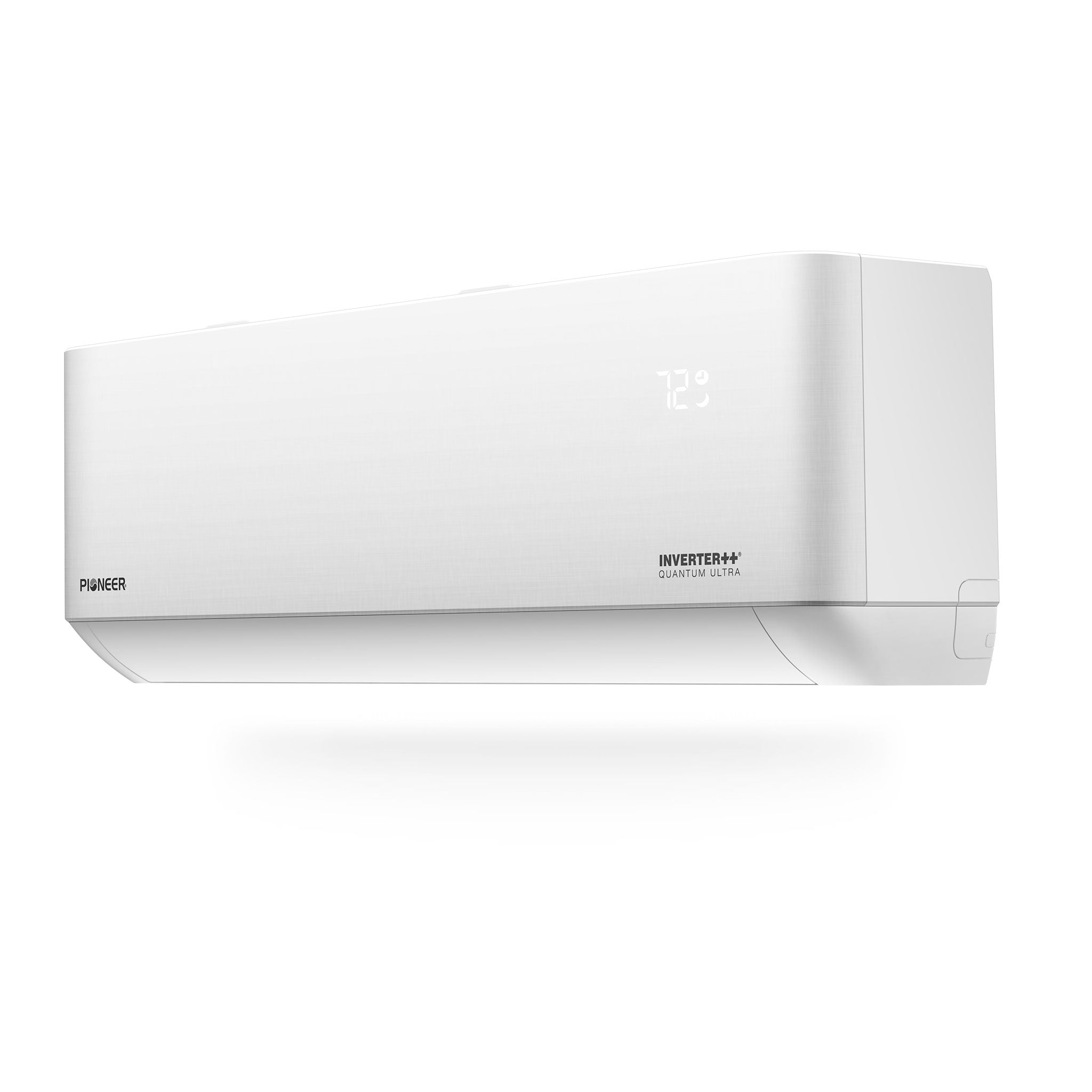

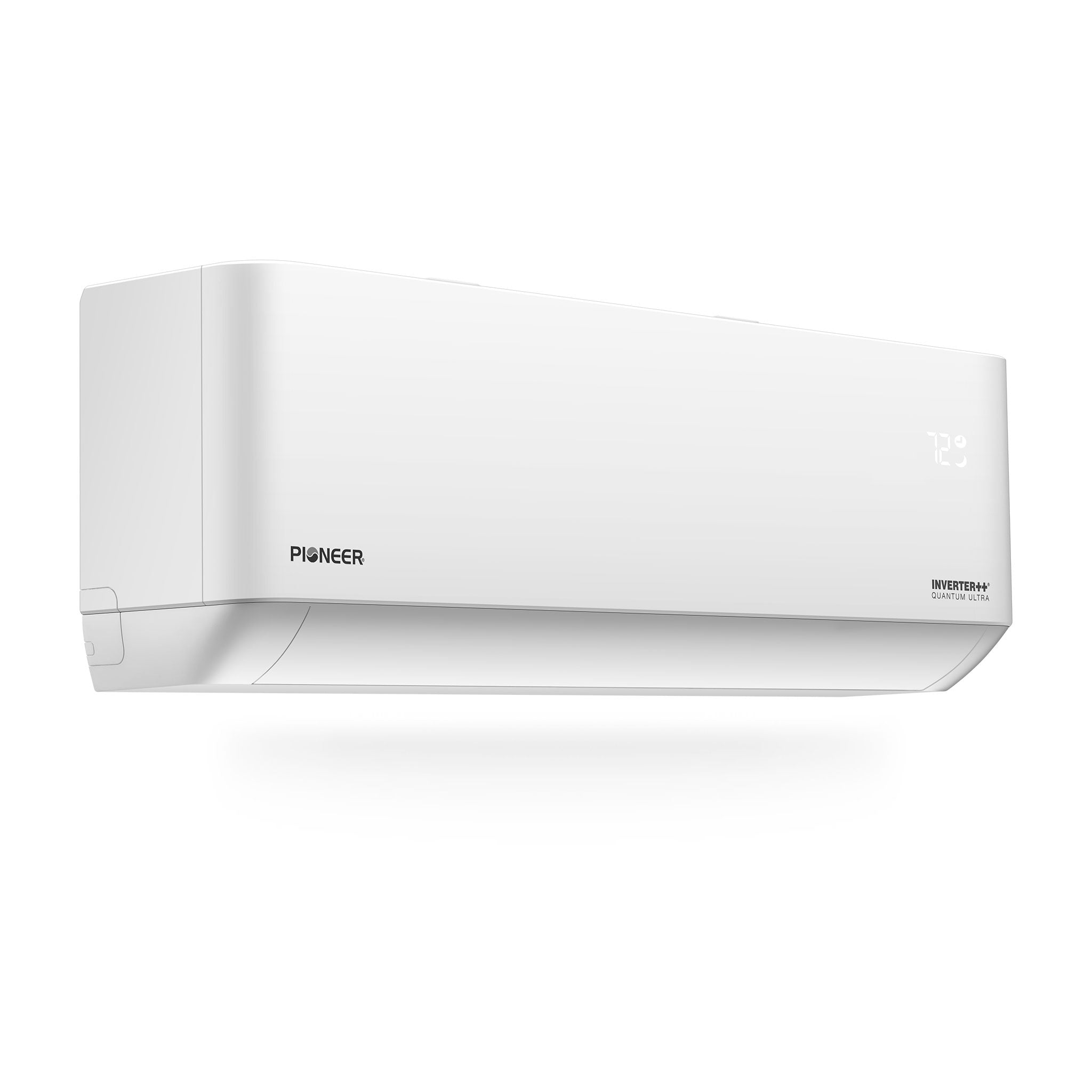

• Indoor Unit
  • Part Number: WT012ALSI24HLG
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 500 / 470 / 411 / 323 / 205 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 46 / 44 / 36 / 32 / 30 dB(A)
  • Product Dimensions (WDH): 36"-1/2 x 7"-5/8 x 12" Inches
  • Carton Dimensions (WDH): 39" x 10"-1/2 x 15" Inches
  • Net / Gross Weight: 23.1 / 30.9 lbs.

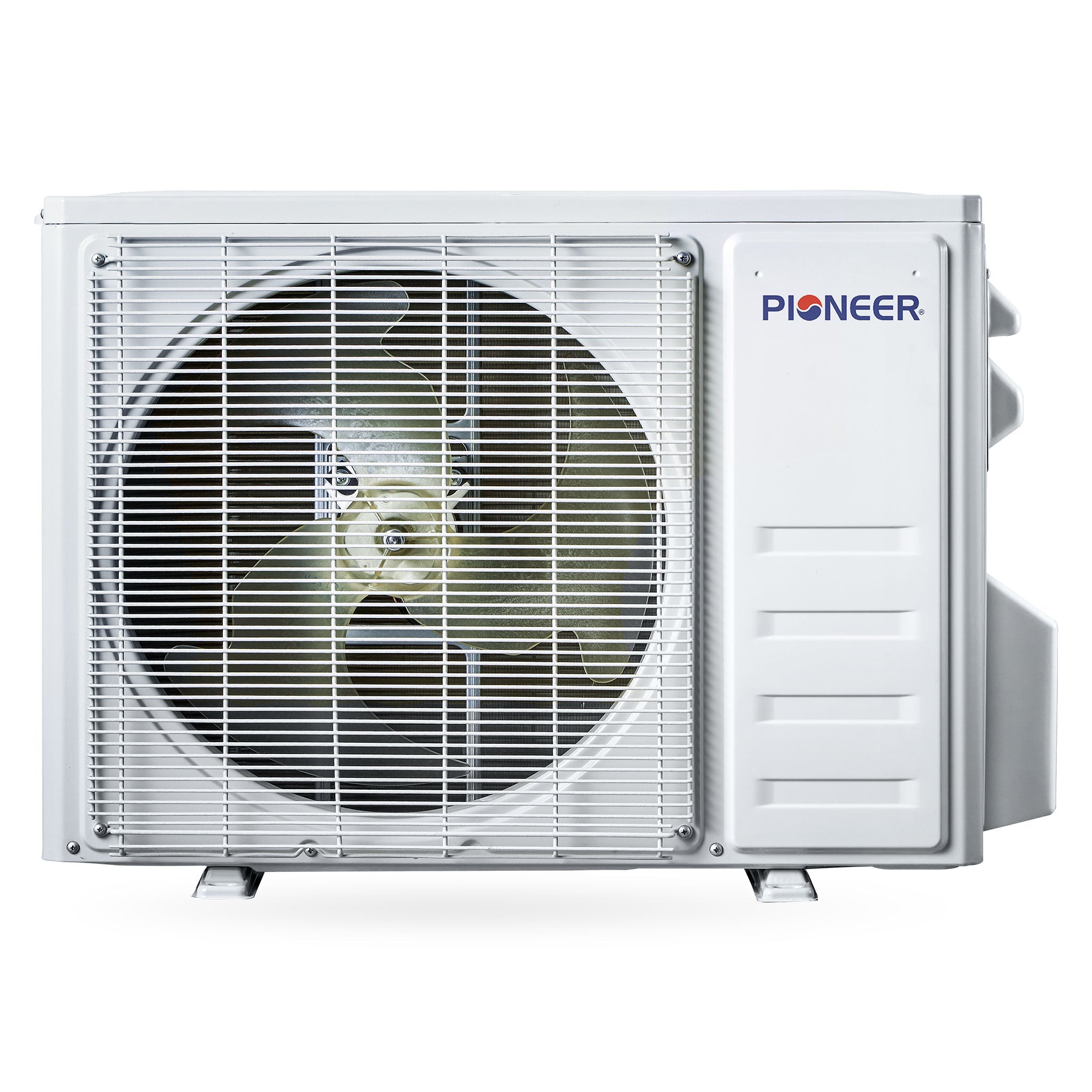

• Outdoor Unit
  • Part Number: YN012ALSI24RPG
  • Breaker Needed: 25A (single-pole)
  • Sound Level: 52 dB(A)
  • Net Dimensions (WDH): 31"-7/8 x 12" x 21"-5/8 Inches
  • Carton Dimensions (WDH): 32"-7/8 x 13" x 22"-5/8 Inches
  • Net / Gross Weight: 58.4 / 65.0 lbs.

Dimension Chart
