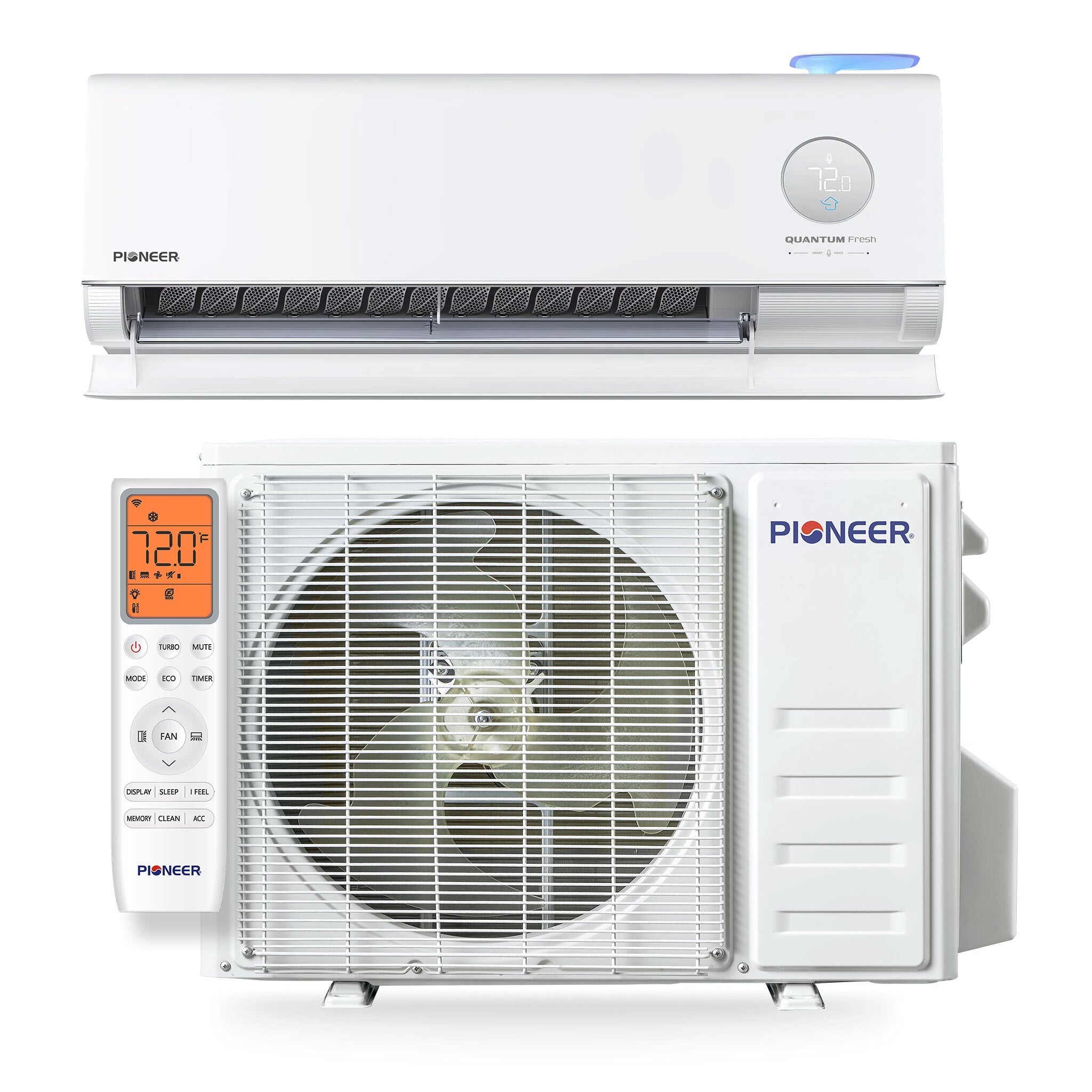

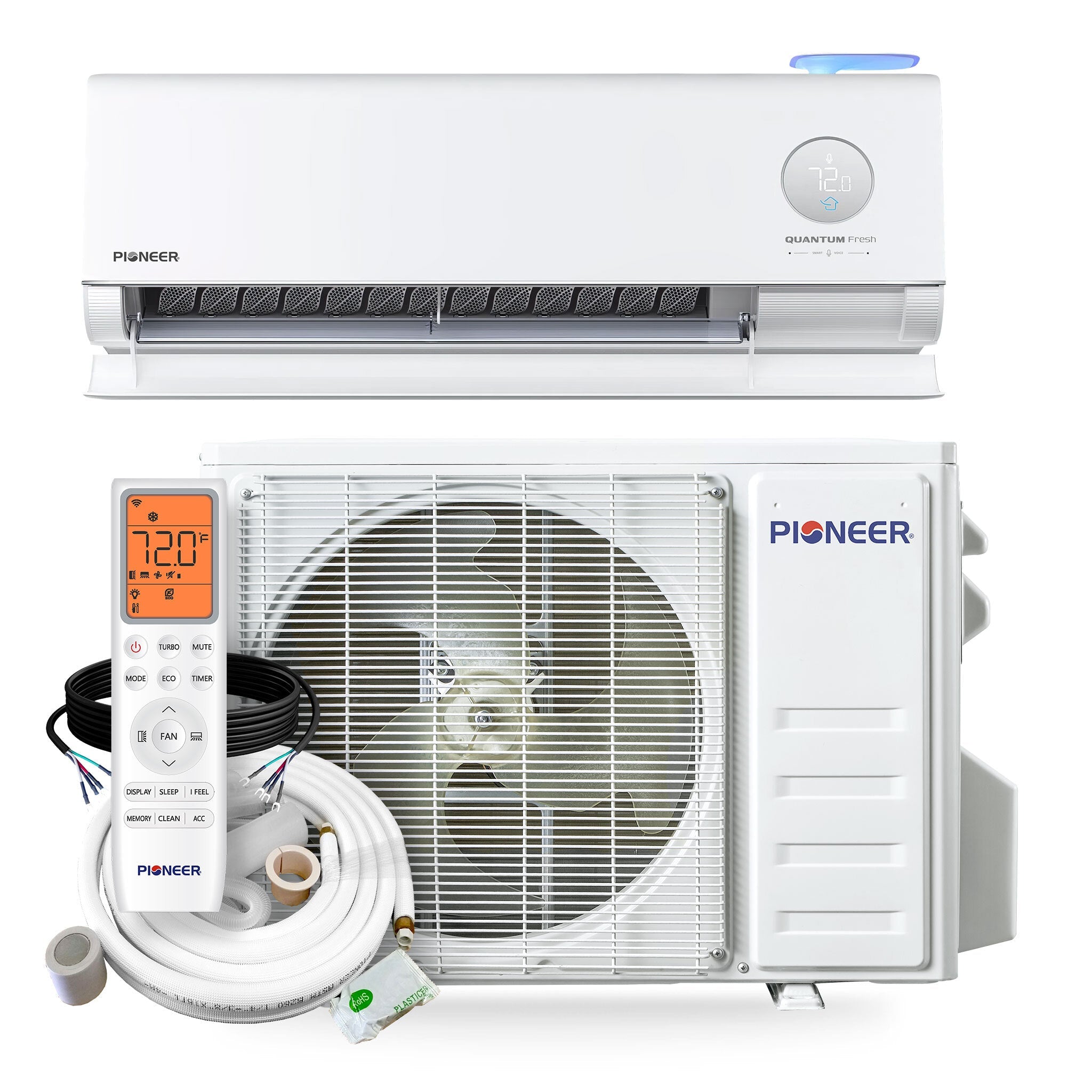

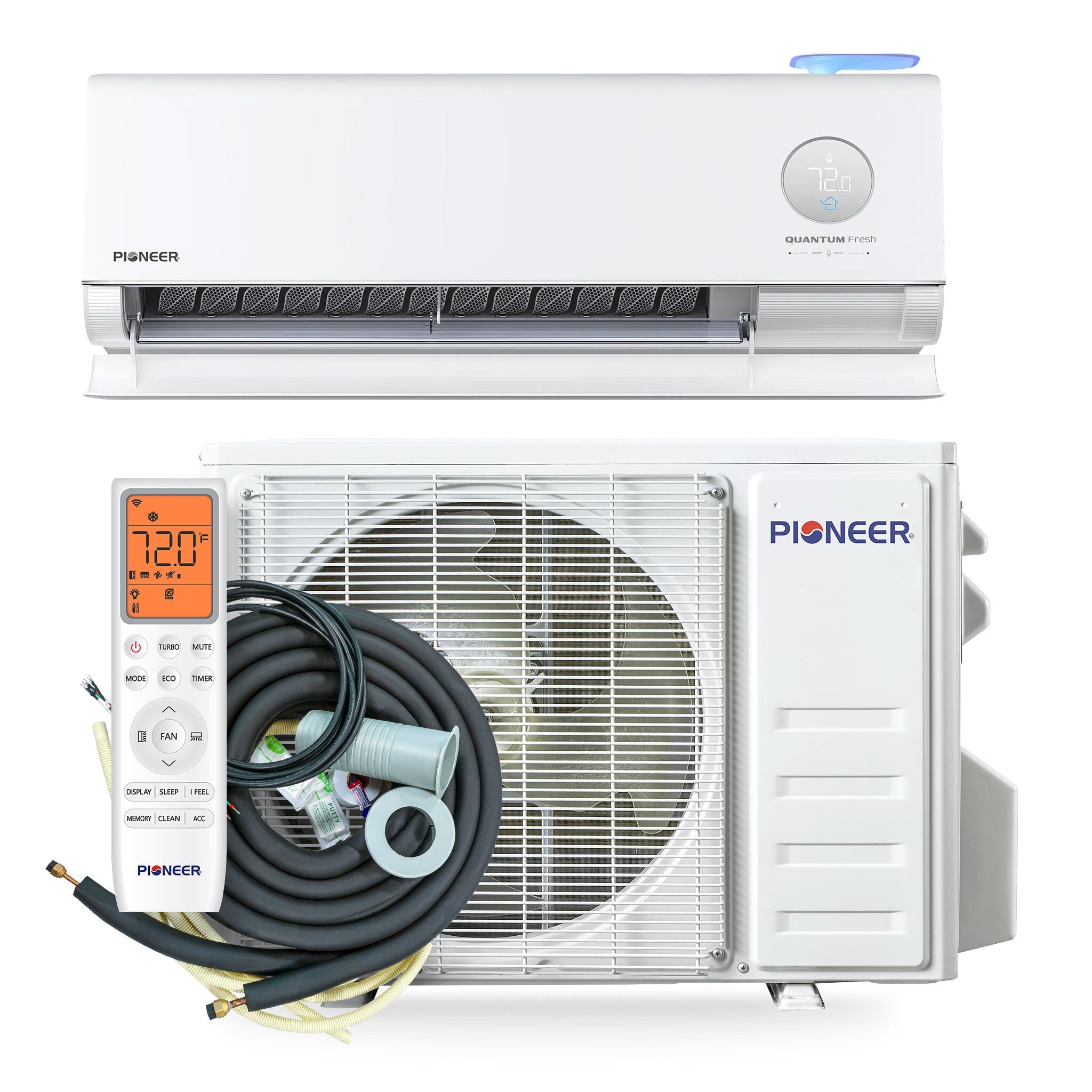

Pioneer® Quantum Fresh™ 12,000 BTU 24 SEER2 High-Wall Ductless Mini-Split Fresh Air Conditioner Inverter Heat Pump Full Set

Summary

• High Efficiency Quantum Fresh Ductless Mini Split Heat Pump System
• Cooling capacity: 12,000 BTU/H with 24.0 SEER2 / 13.0 EER2 efficiency
• Heating capacity: 13,100 BTU/H with 9.5 HSPF2 / 4.2 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• High Wall-Mounted Ductless Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R32 Refrigerant
• Low Ambient Range Operation (As low as -4°F in Heating / As high as 122°F in Cooling)

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Fresh Air Infusion System - Brings in, Filters, and Mixes Outdoor Air to Replenish Indoor Oxygen

• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

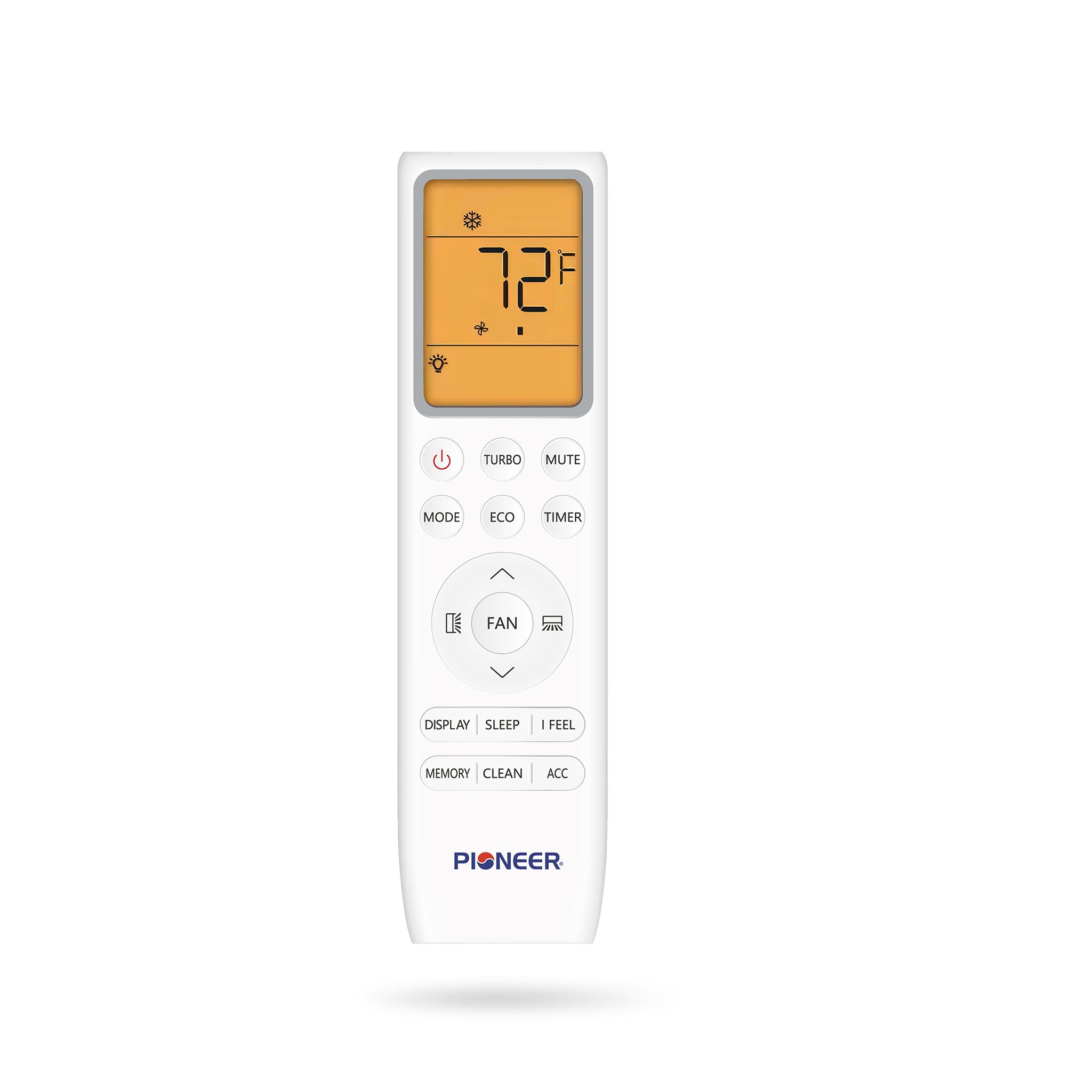

• Functional Remote with:
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

• AHRI Certificate
• Energy Guide
• Submittal Sheet

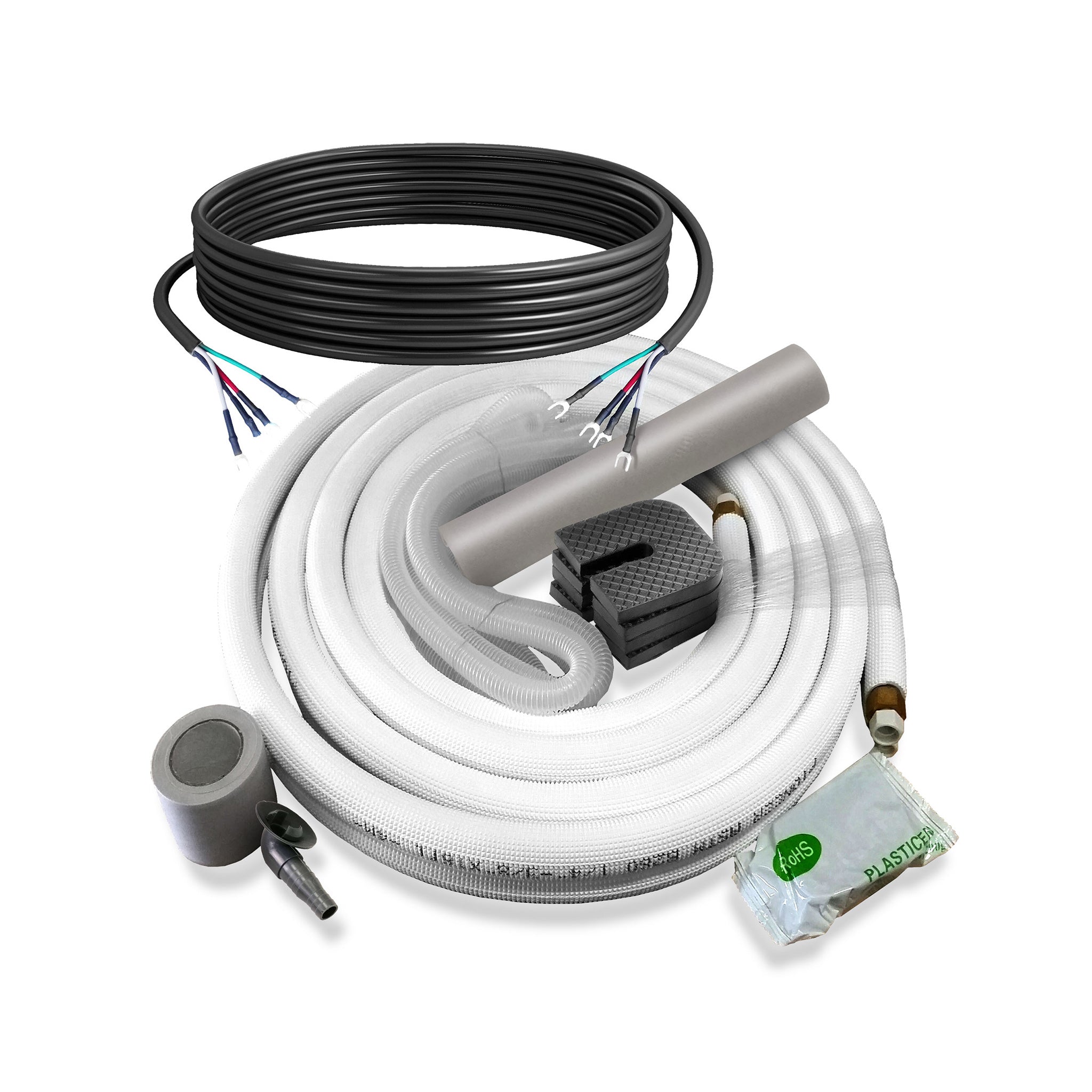

• System Kit
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 12,000 BTU/h
  • Cooling Capacity Range: 3,000~15,000 BTU/h
  • Cooling SEER2: 24.0 BTU/W.h
  • Cooling EER2: 13.0 BTU/W.h
  • Heating Rated Capacity: 13,100 BTU/h
  • Heating Capacity Range: 3,000~13,600 BTU/h
  • Heating HSPF2 (Region IV/V): 9.5 / 8.5 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 4.2 / 2.0 W/W
  • Refrigerant Type: R32
  • Recommended Room Size: 350~500 sq ft
  • Minimum Room Size: 25 sq ft
  • Piping Diameter: 3/8" (Gas) / 1/4" (Liquid)
  • AHRI Reference: 217048739

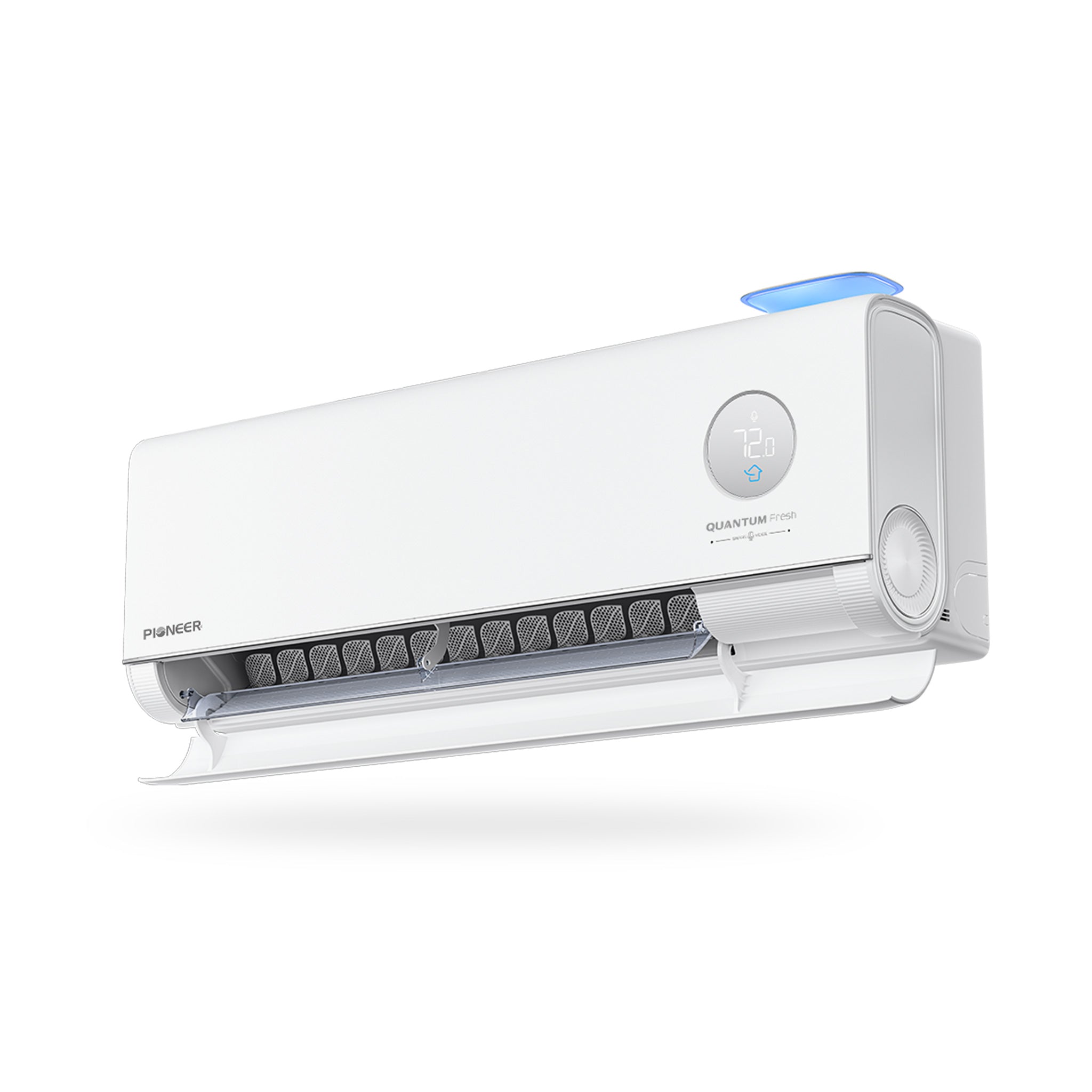

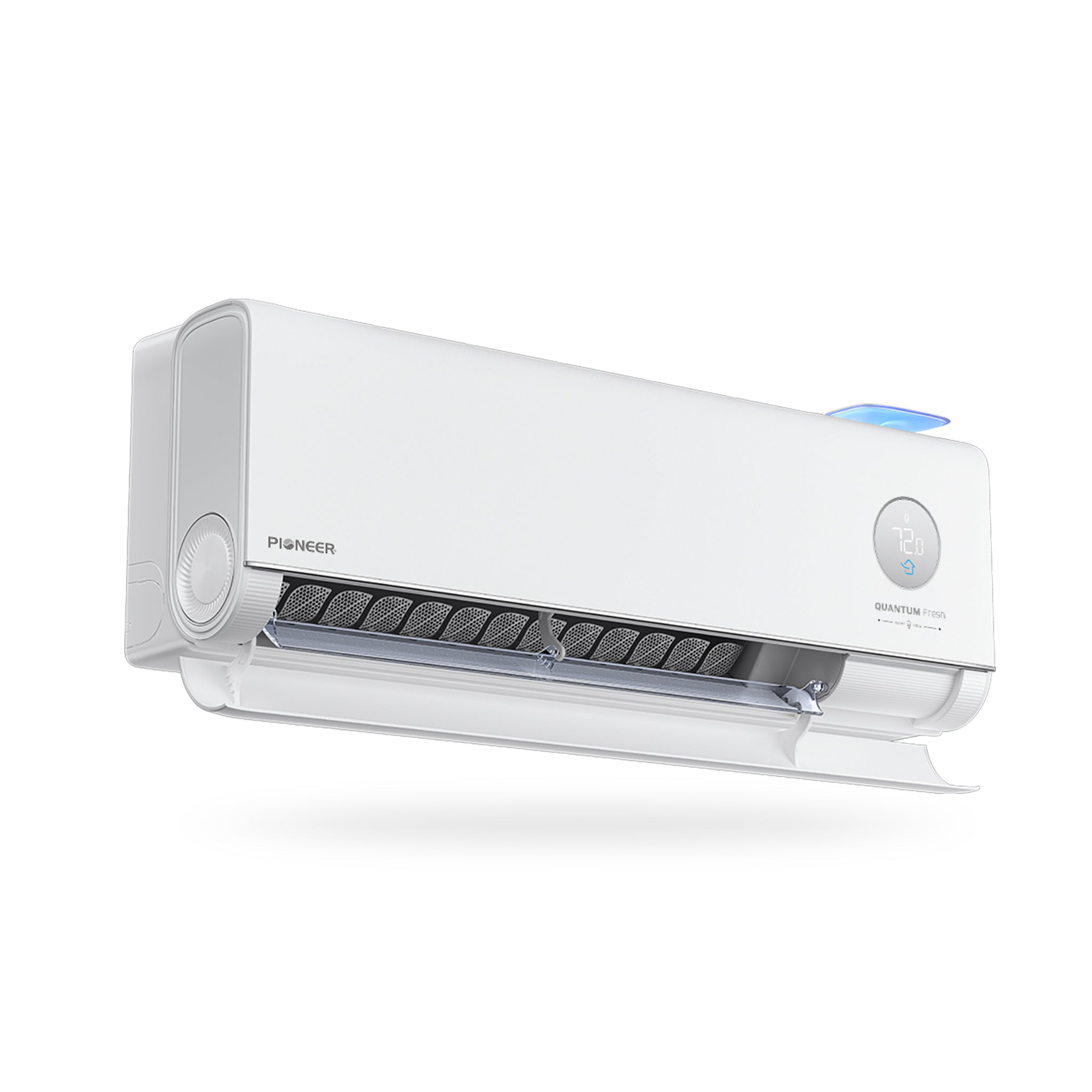

• Indoor Unit
  • Part Number: WT012GLUI25FVQ
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 440 / 410 / 380 / 230 / 150 CFM
  • Fresh Air Volume: 18 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 44 / 43 / 37 / 32 / 30 dB(A)
  • Product Dimensions (WDH): 36"-1/4 x 8"-1/8 x 12"-1/4 Inches
  • Carton Dimensions (WDH): 39"-1/4 x 12"-1/4 x 15"-1/4 Inches
  • Net / Gross Weight: 25.4 / 32.2 lbs

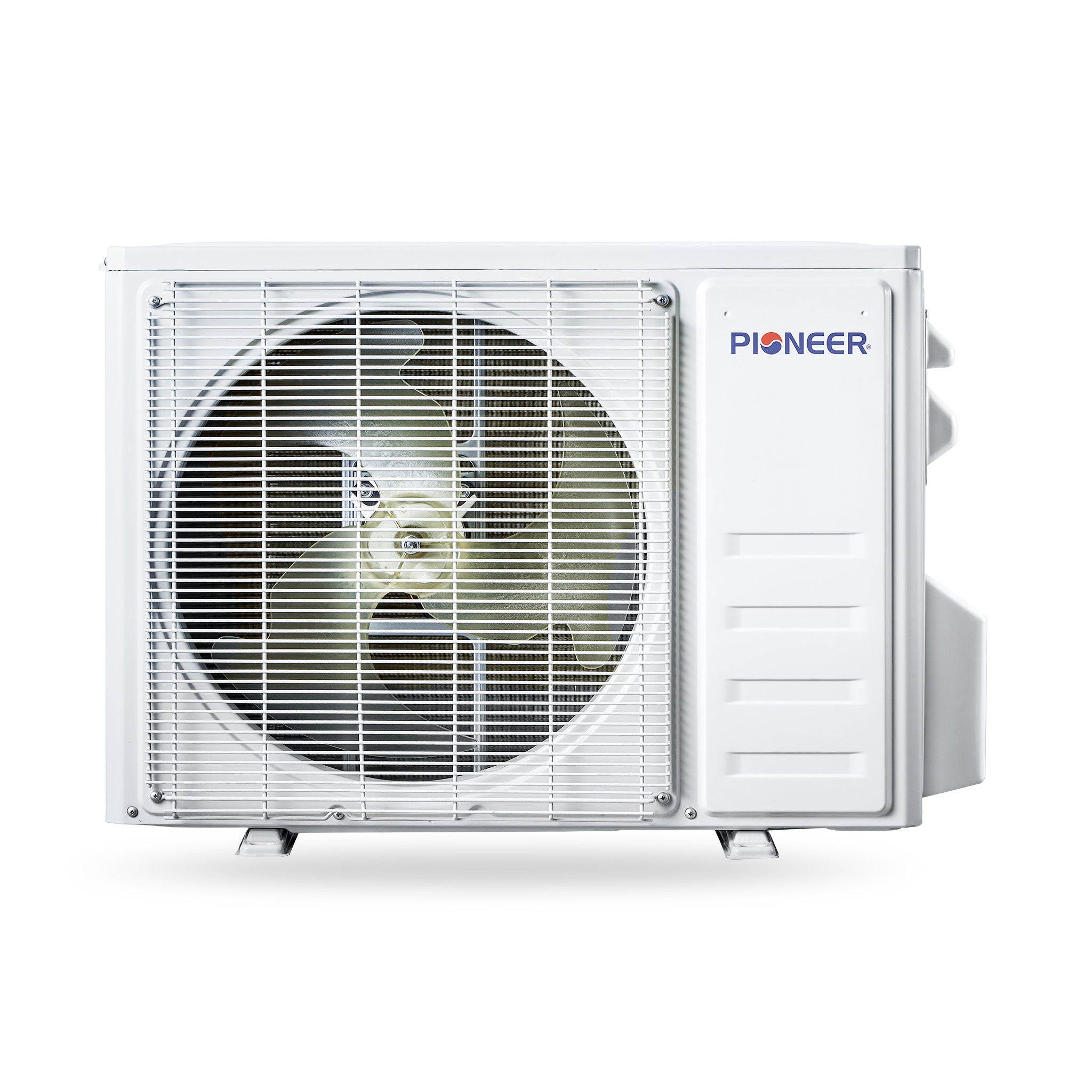

• Outdoor Unit
  • Part Number: YN012GLUI25RPQ

  • Breaker Needed: 15A (double-pole)
  • Sound Level: 53 dB(A)
  • Net Dimensions (WDH): 31"-7/8 x 12" x 21"-5/8 Inches
  • Carton Dimensions (WDH): 33"-1/2 x 14"-1/8 x 23"-5/8 Inches
  • Net / Gross Weight: 55.1 / 61.7 lbs

Dimension Chart
