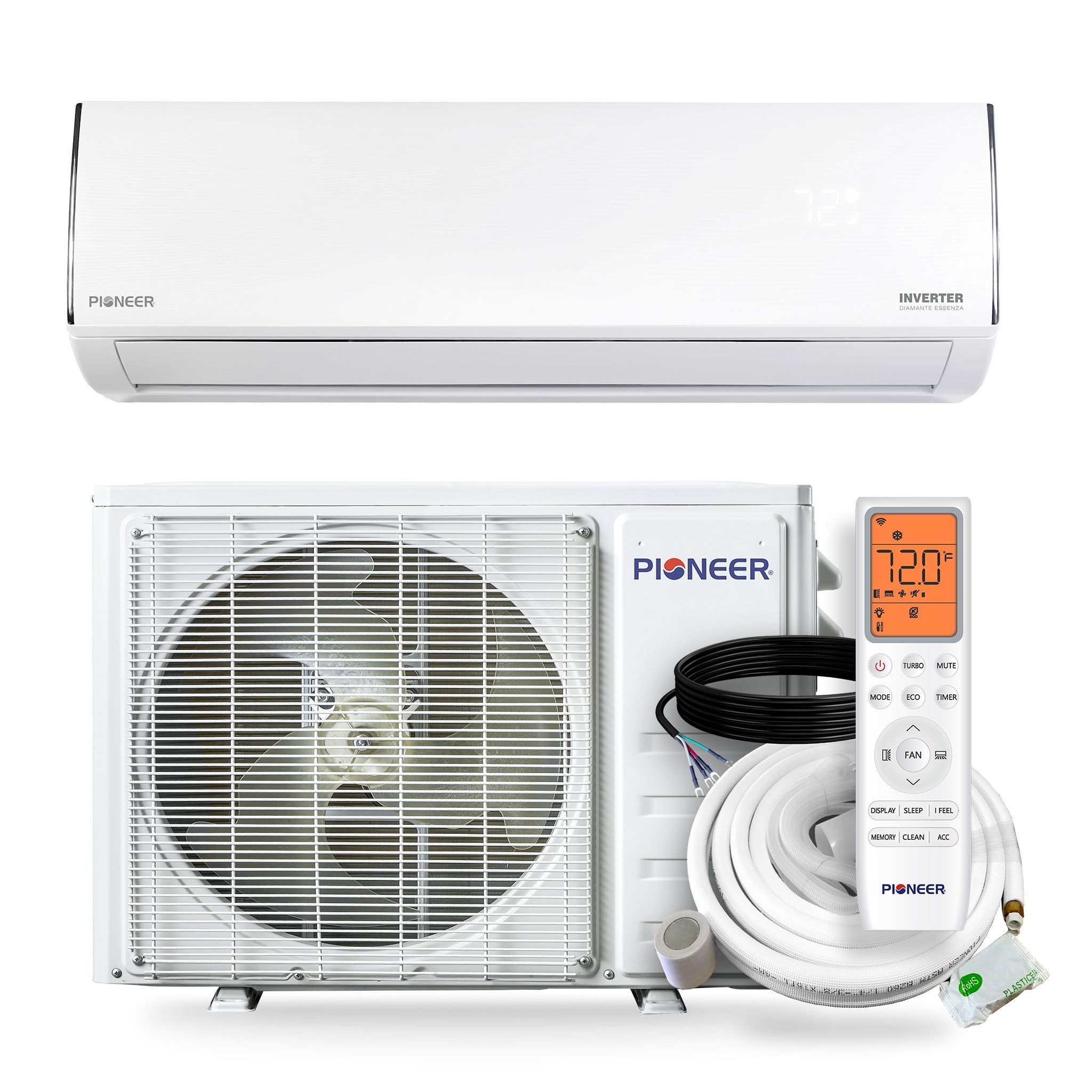

Pioneer® Diamante Essenza™ 23,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit

Summary

• Standard Efficiency Diamante Essenza Ductless Mini Split Heat Pump System
• Cooling capacity: 23,000 BTU/H with 17.0 SEER2 / 9.5 EER2 efficiency
• Heating capacity: 22,400 BTU/H with 9.5 HSPF2 / 3.3 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• High Wall-Mounted Ductless Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance

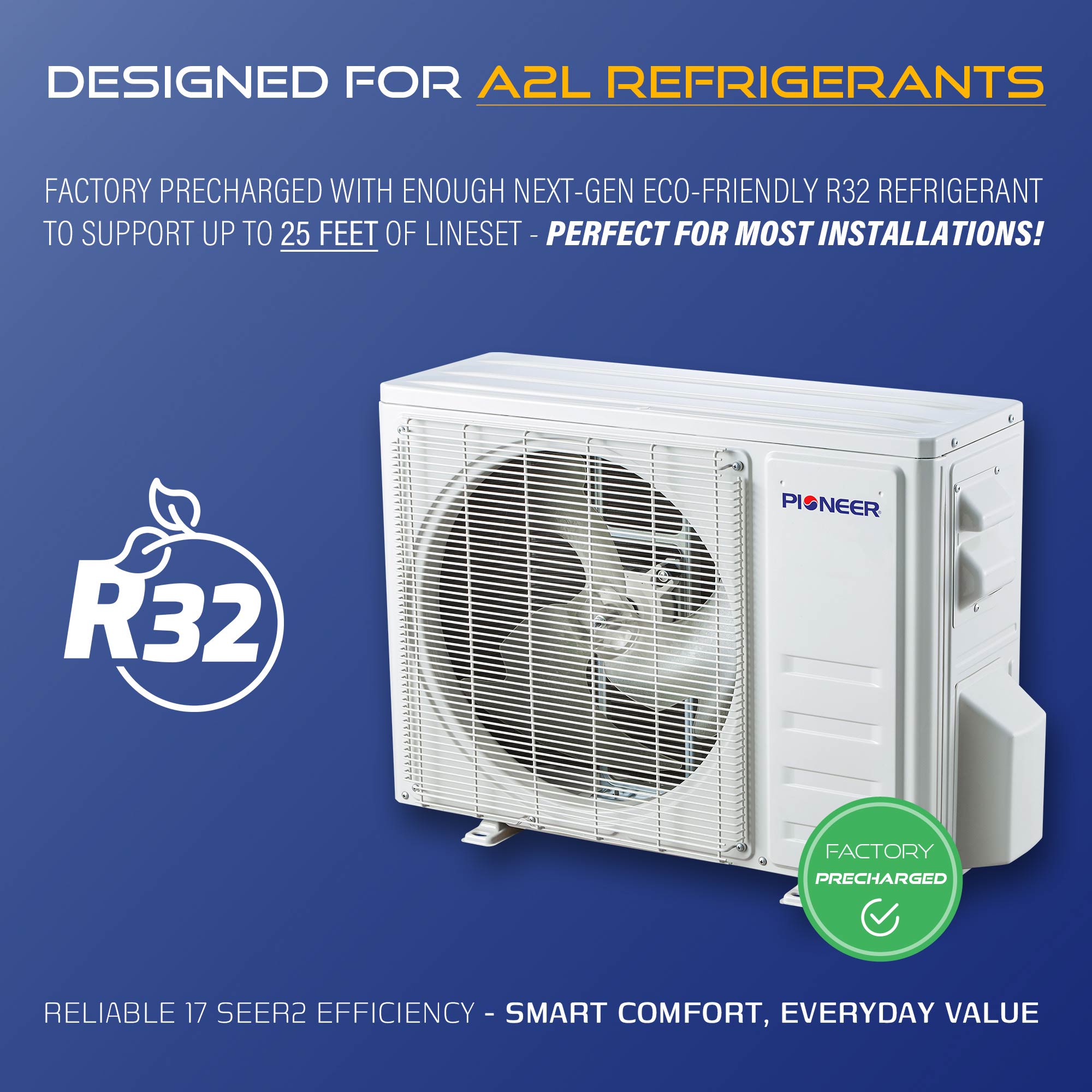

• Factory-Precharged with Environmentally Friendly R-32 Refrigerant
• Standard Ambient Range Operation (As low as 5°F in Heating / As high as 122°F in Cooling)

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters

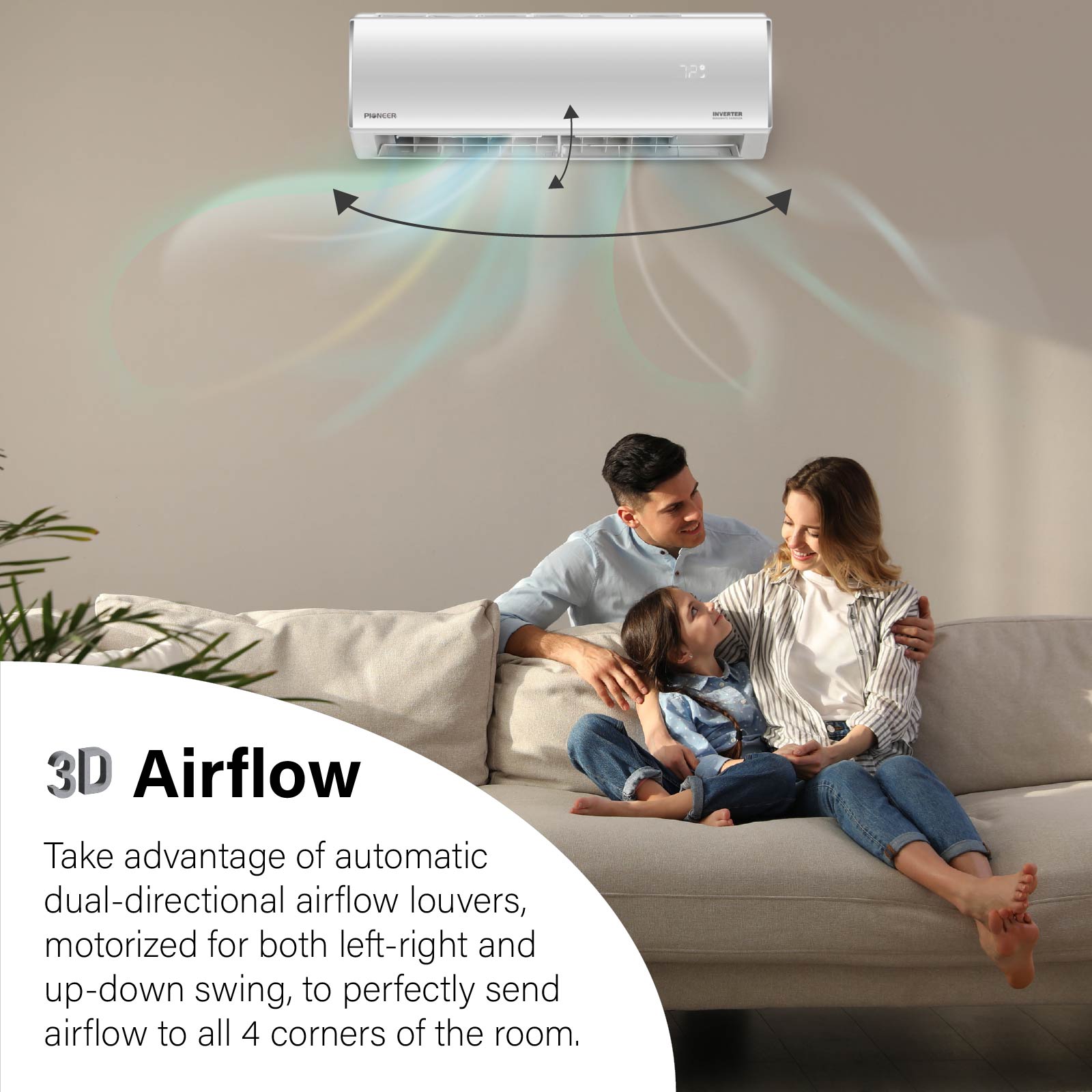

• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
• Functional Remote with:
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

• AHRI Certificate
• Energy Guide
• Submittal Sheet

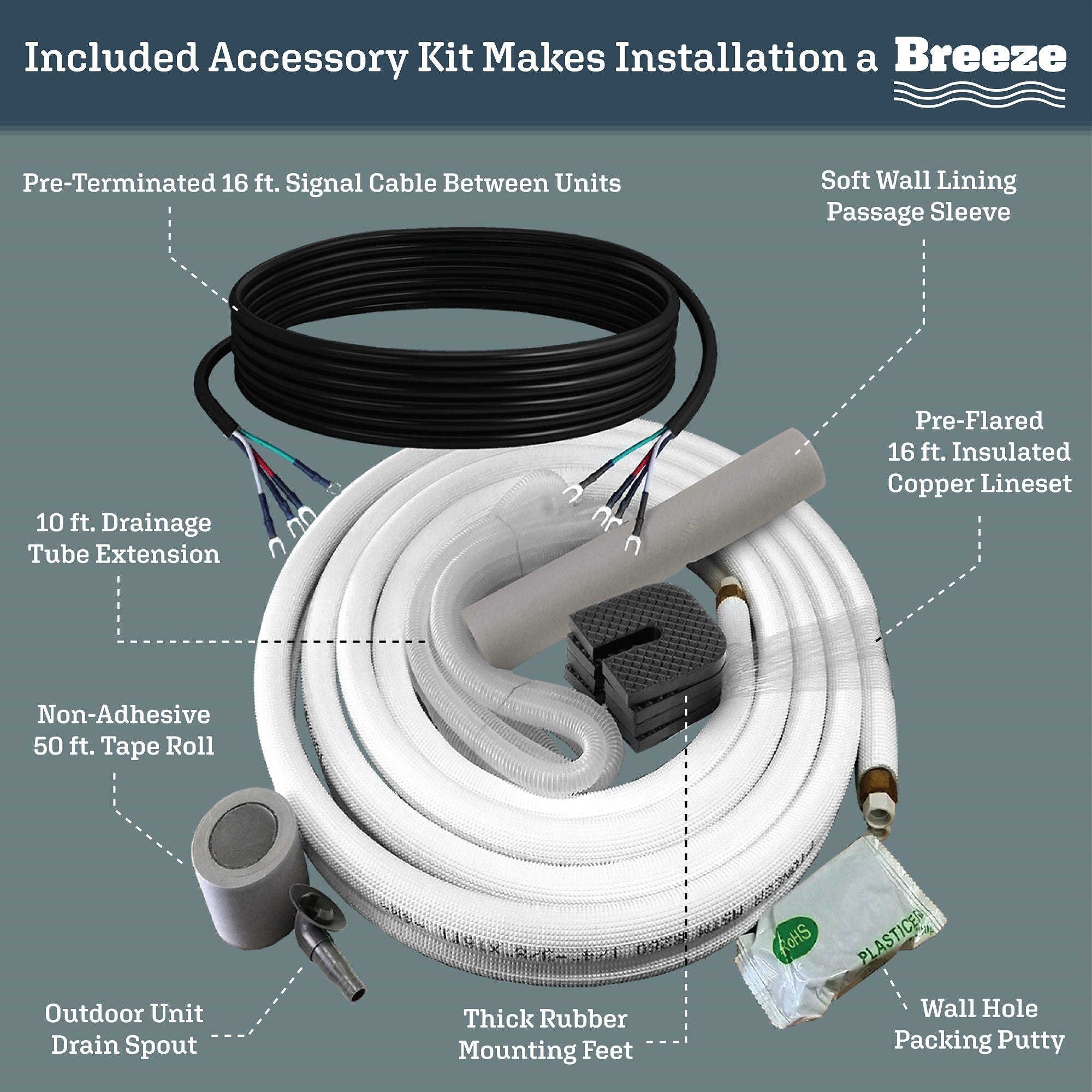

• System Kit
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 23,000 BTU/h
  • Cooling Capacity Range: 5,120~24,500 BTU/h
  • Cooling SEER2: 17.0 BTU/W.h
  • Cooling EER2: 9.5 BTU/W.h
  • Heating Rated Capacity: 22,400 BTU/h
  • Heating Capacity Range: 5,120~24,500 BTU/h
  • Heating HSPF2 (Region IV/V): 9.5 / 8.5 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.3 / 1.8 W/W
  • Refrigerant Type: R-32
  • Recommended Room Size: 750~1,000 sq ft
  • Minimum Room Size: 41 sq ft
  • Piping Diameter: 1/2" (Gas) / 1/4" (Liquid)
  • AHRI Reference: 217048737
• Indoor Unit
  • Part Number: WT024GLUI17HLD
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 676 / 629 / 505 / 412 / 352 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 50 / 48 / 46 / 40 / 37 dB(A)
  • Product Dimensions (WDH): 39"-3/4 x 8"-3/4 x 12"-3/8 Inches
  • Carton Dimensions (WDH): 43"-1/8 x 11"-3/4 x 15"-3/8 Inches
  • Net / Gross Weight: 26.5 / 33.1 lbs
• Outdoor Unit
  • Part Number: YN024GLUI17RPD
  • Breaker Needed: 25A (double-pole)
  • Sound Level: 56 dB(A)
  • Net Dimensions (WDH): 34" x 13"-3/4 x 23"-5/8 Inches
  • Carton Dimensions (WDH): 35"-1/2 x 15"-7/8 x 26"-7/8 Inches
  • Net / Gross Weight: 70.5 / 82.7 lbs

Dimension Chart
