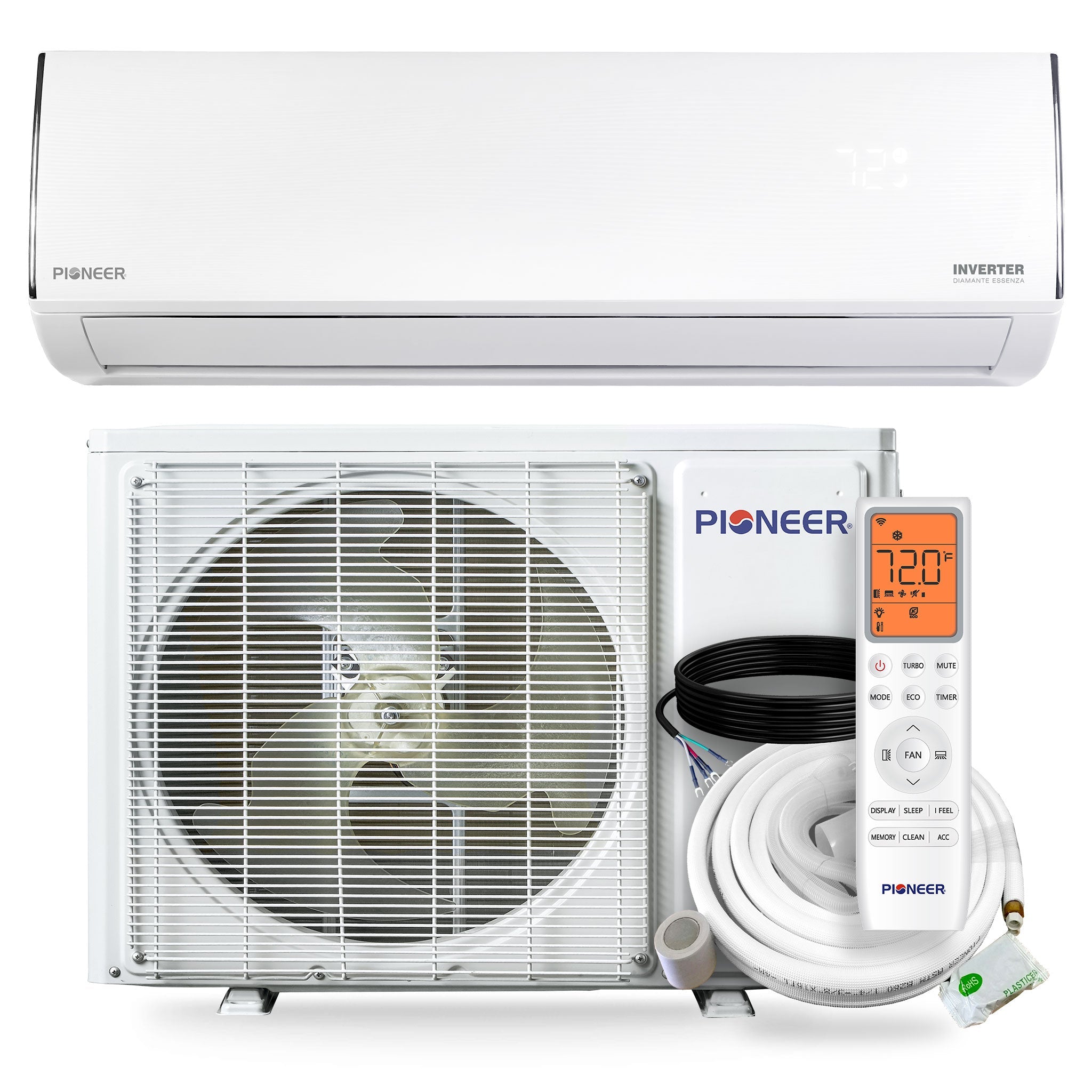

Pioneer® Diamante Essenza™ 35,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit

Summary

• Standard Efficiency Diamante Essenza Ductless Mini Split Heat Pump System
• Cooling capacity: 35,000 BTU/H with 17.0 SEER2 / 9.5 EER2 efficiency
• Heating capacity: 35,400 BTU/H with 8.5 HSPF2 / 3.2 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• High Wall-Mounted Ductless Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance

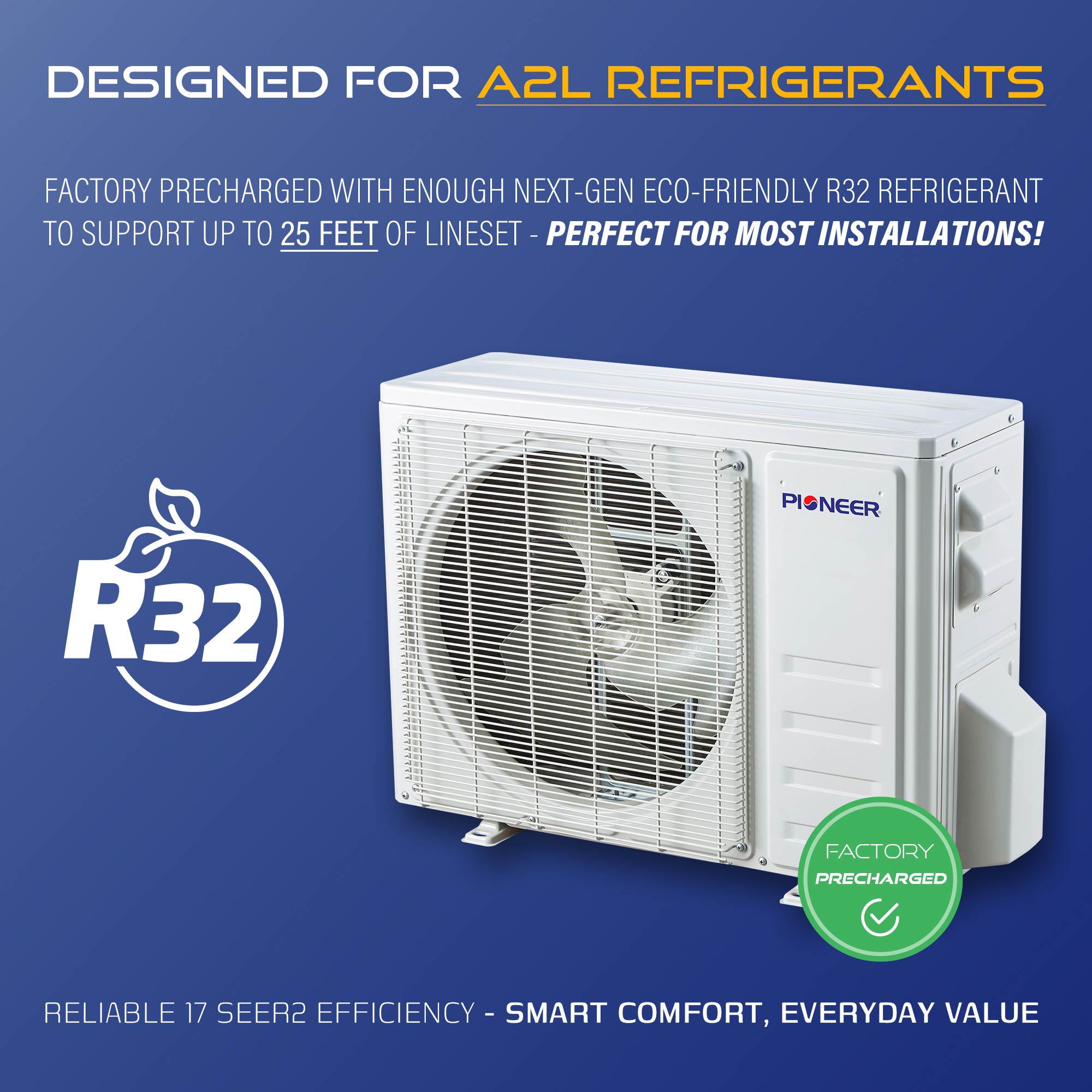

• Factory-Precharged with Environmentally Friendly R-32 Refrigerant
• Standard Ambient Range Operation (As low as 5°F in Heating / As high as 122°F in Cooling)

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
• Functional Remote with:
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

• AHRI Certificate
• Energy Guide
• Submittal Sheet

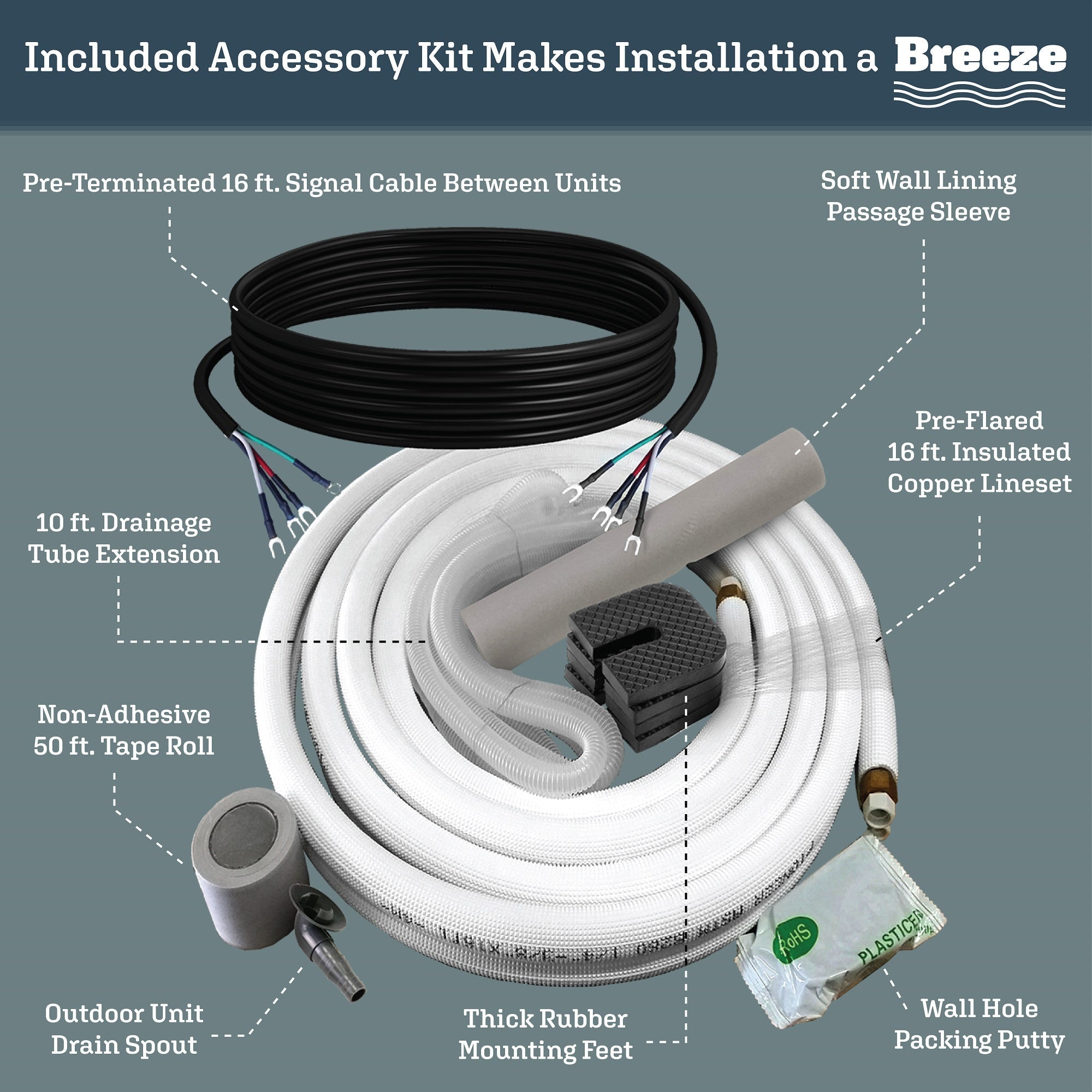

• System Kit
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 35,000 BTU/h
  • Cooling Capacity Range: 7,500~36,000 BTU/h
  • Cooling SEER2: 17.0 BTU/W.h
  • Cooling EER2: 9.5 BTU/W.h
  • Heating Rated Capacity: 35,400 BTU/h
  • Heating Capacity Range: 7,500~36,000 BTU/h
  • Heating HSPF2 (Region IV/V): 8.5 / 7.5 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.2 / 1.8 W/W
  • Refrigerant Type: R-32
  • Recommended Room Size: 1,000~1,400 sq ft
  • Minimum Room Size: 63 sq ft
  • Piping Diameter: 5/8" (Gas) / 1/4" (Liquid)
  • AHRI Reference: 217048738
• Indoor Unit
  • Part Number: WT036GLUI17HLD
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 882 / 741 / 564 / 458 / 411 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 55 / 52 / 46 / 41 / 39 dB(A)
  • Product Dimensions (WDH): 46"-7/8 x 10"-1/4 x 14"-1/4 Inches
  • Carton Dimensions (WDH): 49"-5/8 x 12"-7/8 x 16"-7/8 Inches
  • Net / Gross Weight: 38.6 / 46.3 lbs
• Outdoor Unit
  • Part Number: YN036GLUI17RPD
  • Breaker Needed: 35A (double-pole)
  • Sound Level: 63 dB(A)
  • Net Dimensions (WDH): 38"-1/2 x 16"-1/2 x 31"-5/8 Inches
  • Carton Dimensions (WDH): 40"-1/4 x 18"-7/8 x 32"-7/8 Inches
  • Net / Gross Weight: 105.8 / 120.2 lbs

Dimension Chart
